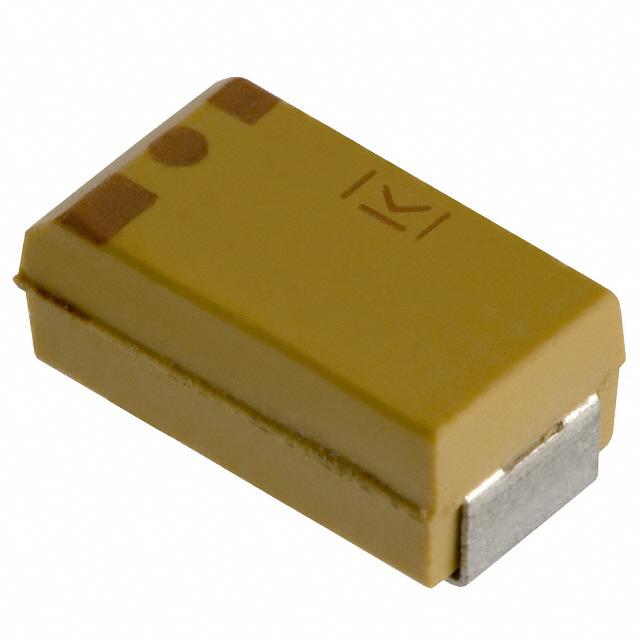

KEMET T494C686K016AT 铝电解电容, 68uF 16V 6032
If you need a capacitor that can be used in a variety of applications such as heavy industrial, medical, military, and aerospace then use this solid tantalum capacitor from Kemet. It can withstand a voltage of 16 VDC. This solid capacitor has a maximum operating temperature of 125 °C. Its leakage current is 10.9 μA. This product is 6 mm long, 2.5 mm tall and 3.2 mm deep. It has a tolerance of 10%. Its capacitance value is 68uF.
额定电压DC 16.0 V
电容 68 µF
等效串联电阻ESR 1 Ω
容差 ±10 %
产品系列 T494
纹波电流 332 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 16 V
安装方式 Surface Mount
封装 6032
长度 6 mm
宽度 3.2 mm
高度 2.5 mm
封装 6032
工作温度 -55℃ ~ 125℃
产品生命周期 Discontinued at Digi-Key
包装方式 Cut Tape CT
最小包装 500
寿命（小时） 2000h @85℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
REACH SVHC版本 2015/06/15
