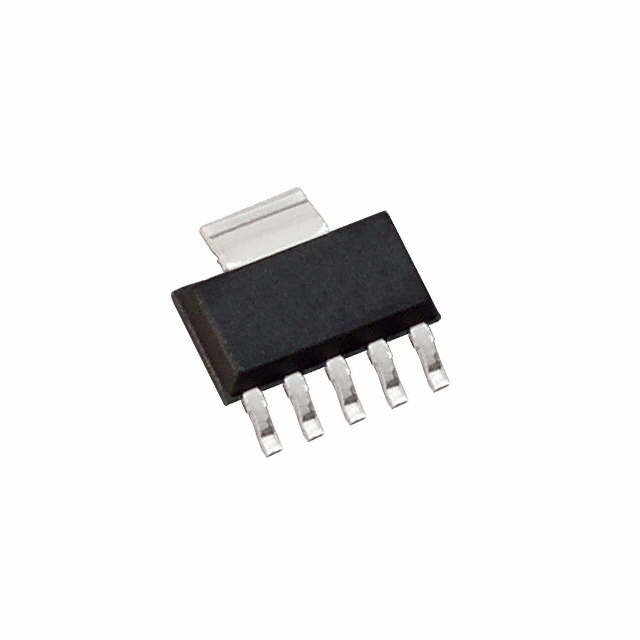

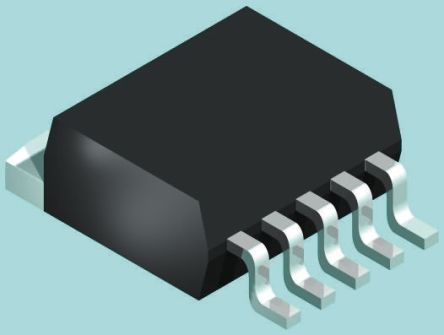

TPS72625DCQ

LDO（低压降）线性稳压器，1A，TPS系列，Texas Instruments### LDO（低压降）线性电压调节器，Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

LDO（低压降）线性稳压器，1A，TPS系列，Texas Instruments

### LDO（低压降）线性稳压器，Texas Instruments

低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

欧时:
Texas Instruments TPS72625DCQ LDO 稳压器, 2.5 V输出, 1A最大输出, ±2%精确度, 1.8 → 6 V输入

立创商城:
TPS72625DCQ

德州仪器TI:
1-A, ultra-low-dropout voltage regulator with power good & enable

得捷:
IC REG LINEAR 2.5V 1A SOT223-6

艾睿:
This LDO TPS72625DCQ linear regulator from Texas Instruments is used to manipulate the voltage level of your circuit. Its typical dropout voltage at current is 0.17@1A V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 1 A. Use this part at voltages between 1.8 V and 6 V. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.05%/ATyp and line regulation of 0.02%/VTyp. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. The maximum dropout voltage is 0.28@1A V. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.

安富利:
LDO Regulator Pos 2.5V 1A 6-Pin5+Tab SOT-223 Tube

Verical:
LDO Regulator Pos 2.5V 1A 6-Pin5+Tab SOT-223 Tube

DeviceMart:
IC REG LDO 2.5V 1A SOT223-6
