LDO和双管可控的上升时间为DSP和便携式应用 LDO AND DUAL SWITCH WITH CONTROLLED RISE TIMES FOR DSP AND PORTABLE APPLICATIONS
Use this high side switch and usb power distribution switch USB powered Ethernet switch from Texas Instruments to control which one of your devices draws power. It only needs a voltage of at least 2.9 V while not exceeding 5.5 V to effectively power your circuit. Its current limit is 0.2 to 0.4 A. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This USB powered network switch has an operating temperature range of -40 °C to 85 °C.
电源电压DC 5.50V max
输出接口数 2
输入电压DC 5.50 V
输出电压 3.30 V
输出电流 150 mA
供电电流 75 µA
耗散功率 1293.1 mW
输入电压Max 5.5 V
输入电压Min 2.9 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1293.1 mW
电源电压 2.9V ~ 5.5V
电源电压Min 2.9 V
输入电压 2.9V ~ 5.5V
安装方式 Surface Mount

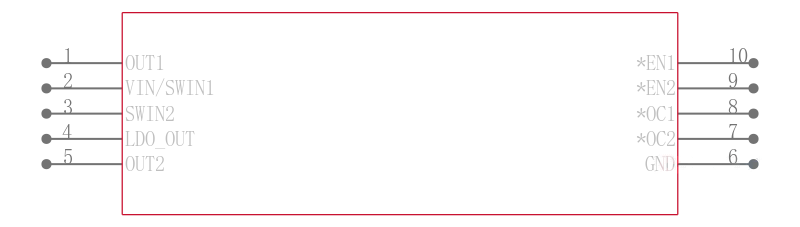

引脚数 10

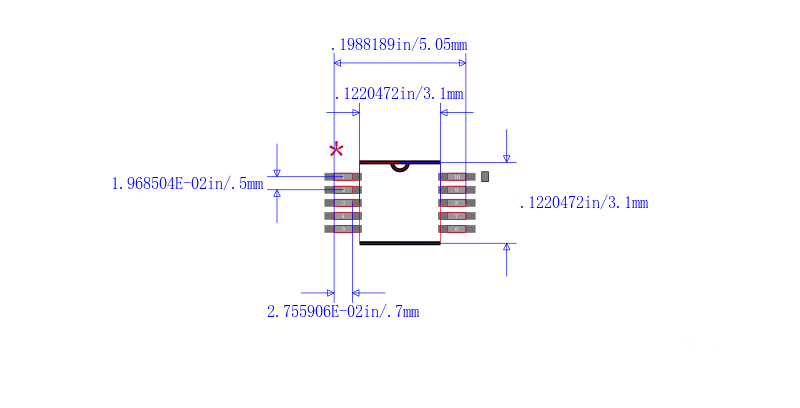

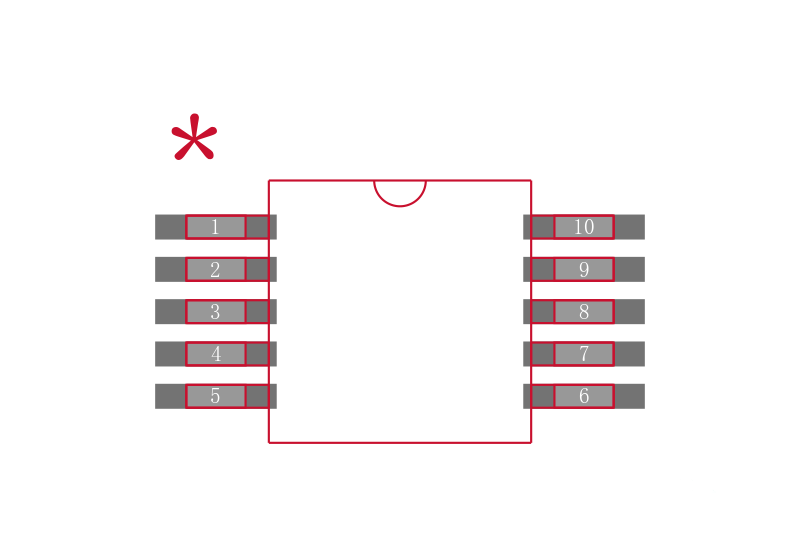

封装 PowerPad-MSOP-10
封装 PowerPad-MSOP-10
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS2147IDGQ TI 德州仪器 | 当前型号 | 当前型号 |
TPS2147IDGQG4 德州仪器 | 完全替代 | TPS2147IDGQ和TPS2147IDGQG4的区别 |
TPS2147IDGQR 德州仪器 | 完全替代 | TPS2147IDGQ和TPS2147IDGQR的区别 |
TPS2147IDGQRG4 德州仪器 | 完全替代 | TPS2147IDGQ和TPS2147IDGQRG4的区别 |
