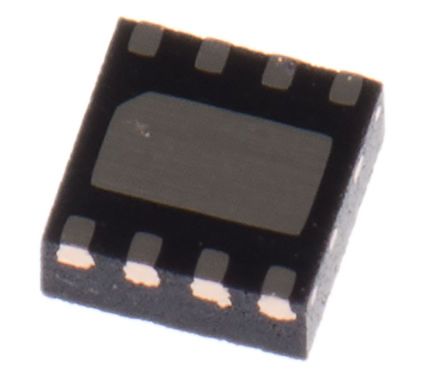

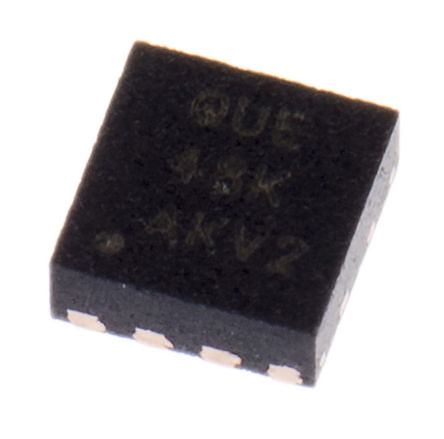

TEXAS INSTRUMENTS TPS7A1633DRBT 固定电压稳压器, LDO, 3V至60V, 265mV压差, 3.3V输出, 100mA输出, VSON-8
LDO(低压降)线性稳压器,最大 100mA,3.0V 至 3.9V,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR 3.3V 100MA 8SON
立创商城:
TPS7A1633DRBT
德州仪器TI:
100-mA, 60-V, ultra-low-IQ, low-dropout LDO voltage regulator with power good and enable
欧时:
LDO(低压降)线性稳压器,最大 100mA,3.0V 至 3.9V,Texas Instruments### LDO(低压降)线性稳压器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
贸泽:
LDO Voltage Regulators 60V 5uA IQ Lo-Dropout 100mA Reg
艾睿:
This LDO TPS7A1633DRBT linear regulator developed by Texas Instruments keeps the power stable! It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.06@20mA|0.265@100mA V. This voltage regulation device&s;s single output can produce a current up to 0.1 A. By only needing an input voltage of 3 V with a maximum of 60 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 1%VoTyp and line regulation of 1%VoTyp. This product will be shipped in tape and reel packaging so that components can be mounted effectively. The maximum dropout voltage is 0.5@100mA V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
安富利:
LDO Regulator Pos 3.3V 0.1A 8-Pin SON T/R
Verical:
LDO Regulator Pos 3.3V 0.1A Automotive 8-Pin VSON EP T/R
Newark:
Fixed LDO Voltage Regulator, 3V to 60V, 265mV Dropout, 3.3Vout, 100mAout, VSON-8
输出接口数 1
输出电压 3.3 V
输出电流 100 mA
针脚数 8
静态电流 5 µA
输出电容类型 Ceramic
跌落电压 265 mV
调节输出数 1
输入电压Max 60 V
输入电压Min 3 V
输出电流Max 100 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤60 V
安装方式 Surface Mount
引脚数 8
封装 SON-8
长度 3.15 mm
宽度 3.15 mm
高度 0.95 mm
封装 SON-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS7A1633DRBT TI 德州仪器 | 当前型号 | 当前型号 |
TPS7A1633DRBR 德州仪器 | 类似代替 | TPS7A1633DRBT和TPS7A1633DRBR的区别 |
