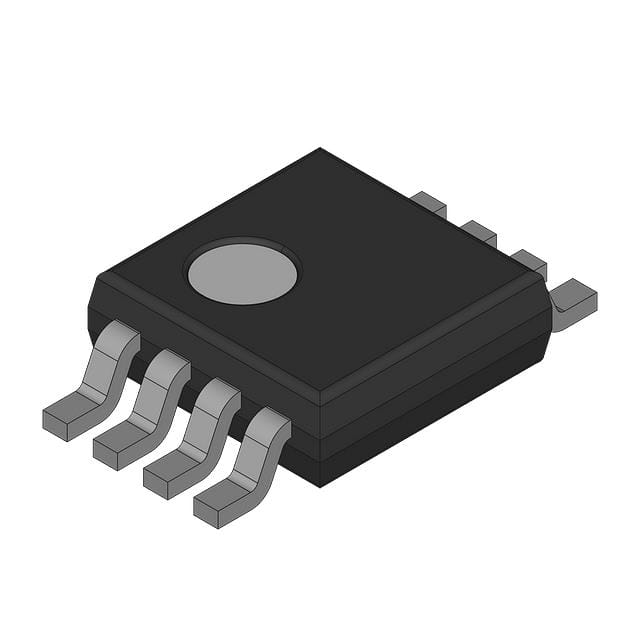

TPS7A1601QDGNRQ1概述

60 -V , 5 μA智商, 100毫安,低压差稳压器具有使能和电源良好 60-V, 5-μA IQ, 100-mA, Low-Dropout VOLTAGE REGULATOR With Enable and Power-Good

The TPS7A16xx-Q1 ultralow-power, low-dropout LDO voltage regulators offer the benefits of ultralow quiescent current, high input voltage, and miniaturized, high-thermal-performance packaging.

The TPS7A16xx-Q1 devices are designed for continuous or sporadic power backup battery-powered applications where ultralow quiescent current is critical to extending system battery life.

The TPS7A16xx-Q1 devices offer an enable pin EN compatible with standard CMOS logic and an integrated open-drain active-high power-good output PG with a user-programmable delay. These pins are intended for use in microcontroller-based, battery-powered applications where power-rail sequencing is required.

In addition, the TPS7A16xx-Q1 devices are ideal for generating a low-voltage supply from multicell solutions ranging from high-cell-count power-tool packs to automotive applications; not only can these devices supply a well-regulated voltage rail, but they can also withstand and maintain regulation during voltage transients. These features translate to simpler and more cost-effective, electrical surge-protection circuitry.

TPS7A1601QDGNRQ1中文资料参数规格
技术参数

输出接口数 1

输出电压 1.2V ~ 18.5V

输出电流 100 mA

静态电流 5.00 µA

输出电容类型 Ceramic

跌落电压 0.06V @20mA

调节输出数 1

输入电压Max 60 V

输入电压Min 3 V

输出电流Max 0.1 A

工作温度Max 125 ℃

工作温度Min -40 ℃

精度 ±2 %

输入电压 3V ~ 60V

封装参数

安装方式 Surface Mount

引脚数 8

封装 PowerPad-MSOP-8

外形尺寸

封装 PowerPad-MSOP-8

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

TPS7A1601QDGNRQ1引脚图与封装图
TPS7A1601QDGNRQ1引脚图

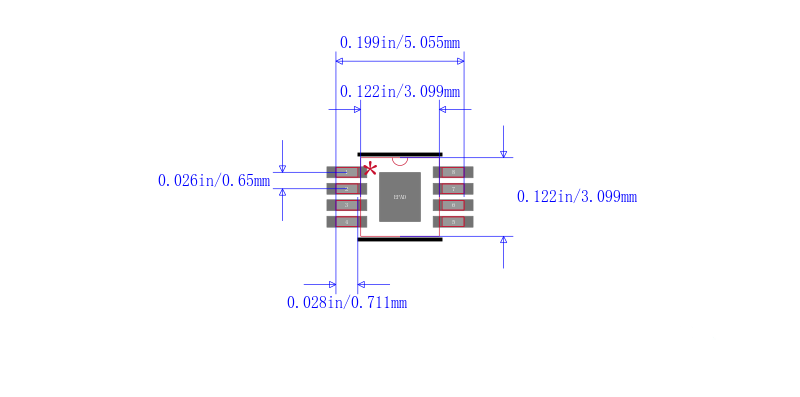

TPS7A1601QDGNRQ1封装图

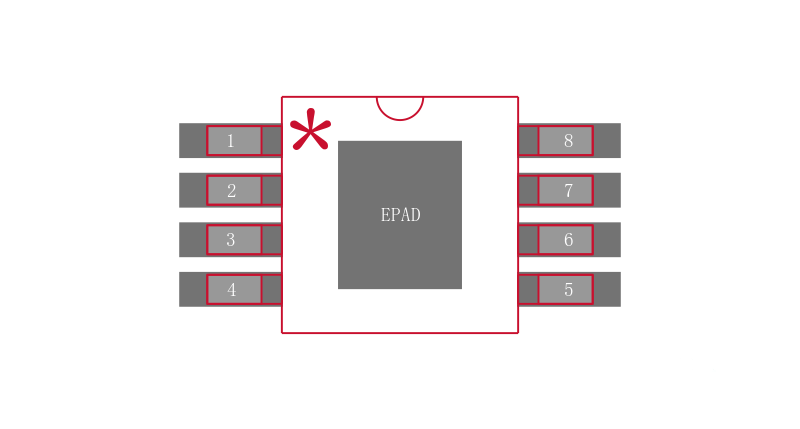

TPS7A1601QDGNRQ1封装焊盘图
