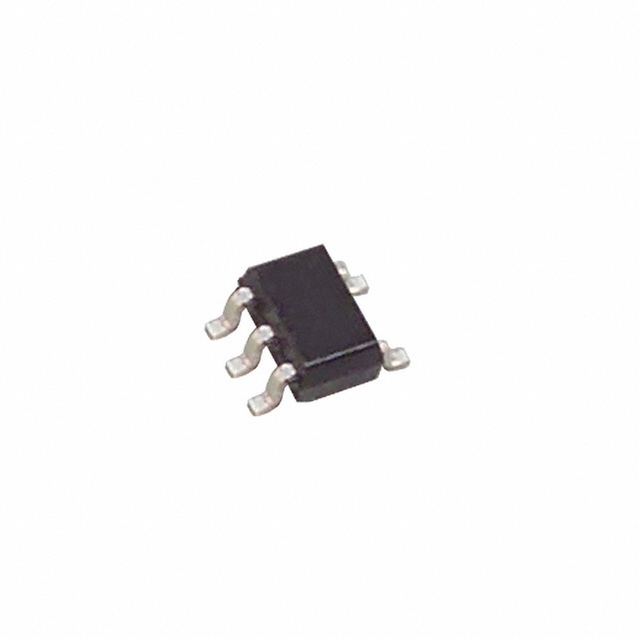

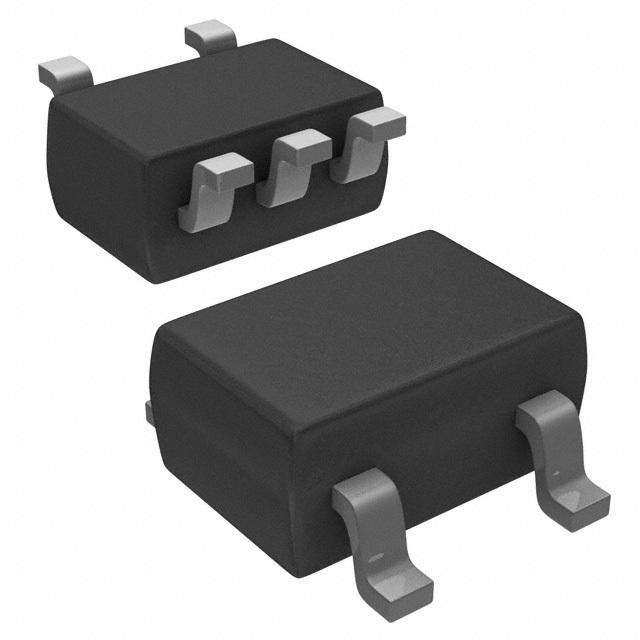

TPS79730MDCKREP

具有可编程输出的增强型产品超低功耗 10mA 低压降线性稳压器 5-SC70 -55 to 125

Linear Voltage Regulator IC Positive Fixed 1 Output 10mA SC-70-5

立创商城:
TPS79730MDCKREP

德州仪器TI:
Enhanced product, ultra-low power 10-mA LDO regulator with power good

得捷:
IC REG LINEAR 3V 10MA SC70-5

艾睿:
This LDO TPS79730MDCKREP linear regulator developed by Texas Instruments keeps the power stable! Its typical dropout voltage at current is 0.125@10mA V. It has an overall accuracy of ±4 %. This device has a maximum power dissipation of 318 mW. This voltage regulation device&s;s single output can produce a current up to 0.01 A. By only needing an input voltage of 1.8 V with a maximum of 5.5 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 3 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 17mVTyp and line regulation of 0.15%/VTyp. Its maximum power dissipation is 318 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -55 °C and a maximum of 125 °C. The maximum dropout voltage is 0.4@10mA V.

安富利:
LDO Regulator Pos 3V 0.01A 5-Pin SC-70 T/R

Chip1Stop:
LDO Regulator Pos 3V 0.01A 5-Pin SC-70 T/R

Verical:
LDO Regulator Pos 3V 0.01A 5-Pin SC-70 T/R

Newark:
# TEXAS INSTRUMENTS  TPS79730MDCKREP  Fixed LDO Voltage Regulator, 1.8V to 5.5V, 125mV Dropout, 3Vout, 10mAout, SC-70-5
