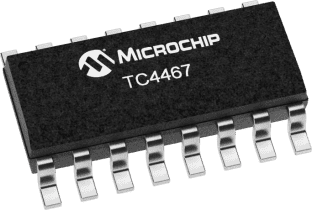

TC4467系列 1.2A 18V最高电压 15Ohm 四通道 低边 MOSFET驱动器-SOIC-16
Working with high voltage decision making circuits? This power driver by Technology will properly help switch states. This device has a maximum propagation delay time of 75 ns and a maximum power dissipation of 760 mW. Its maximum power dissipation is 760 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device has a minimum operating supply voltage of 4.5 V and a maximum of 18 V. This gate driver has an operating temperature range of 0 °C to 70 °C.
电源电压DC 4.50V min
工作电压 4.5V ~ 18V
上升/下降时间 15 ns
输出接口数 4
输出电流 1.2 A
供电电流 4.00 mA
通道数 4
耗散功率 0.76 W
上升时间 25 ns
下降时间 25 ns
下降时间Max 25 ns
上升时间Max 25 ns
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 760 mW
电源电压 4.5V ~ 18V
安装方式 Surface Mount

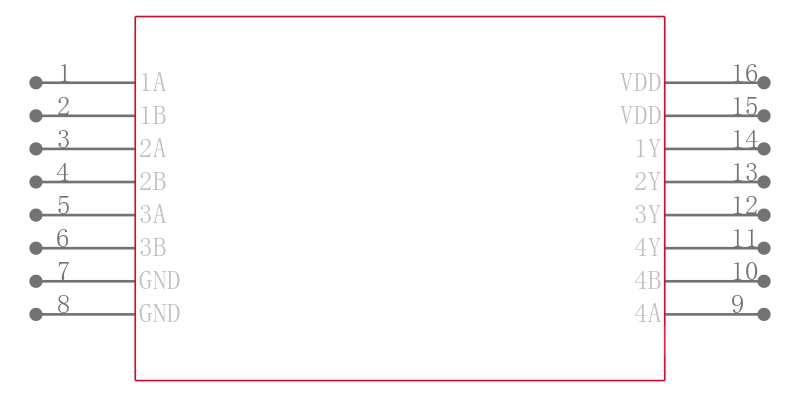

引脚数 16

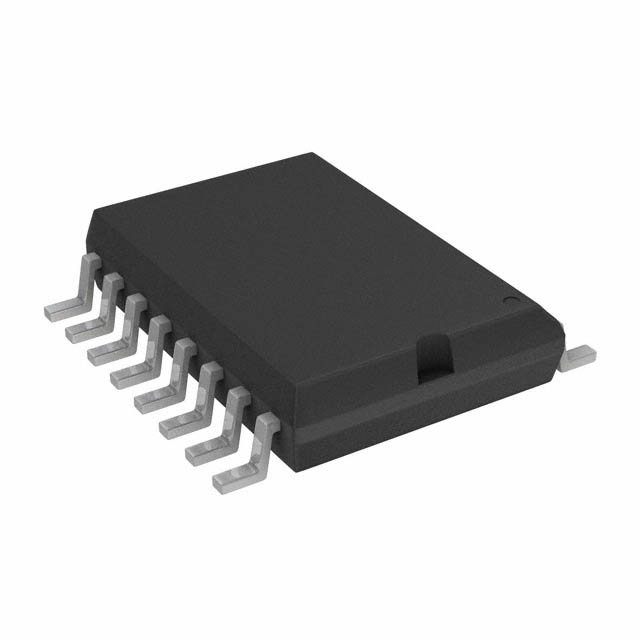

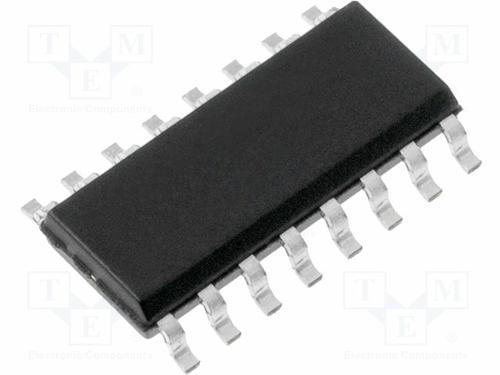

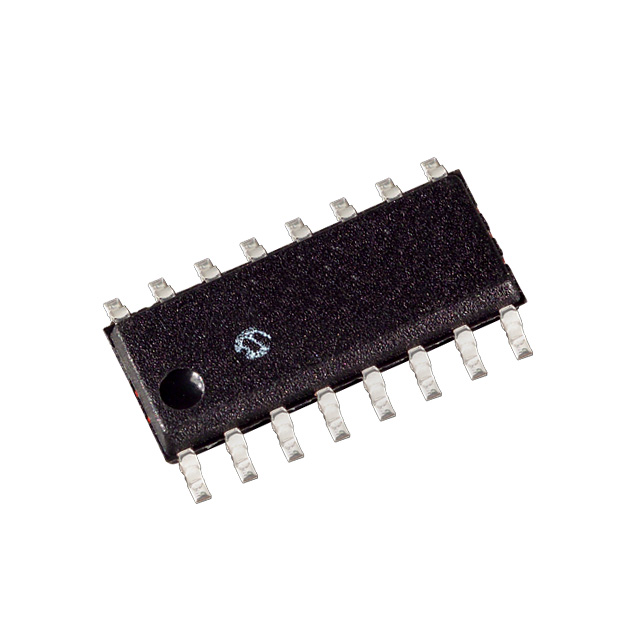

封装 SOIC-16
高度 2.31 mm
封装 SOIC-16
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TC4467COE Microchip 微芯 | 当前型号 | 当前型号 |
TC4467COE713 微芯 | 类似代替 | TC4467COE和TC4467COE713的区别 |
MIC4467ZWM 微芯 | 类似代替 | TC4467COE和MIC4467ZWM的区别 |
MIC4467YWM 微芯 | 类似代替 | TC4467COE和MIC4467YWM的区别 |
