具有 VID 控制的 4.5V 至 17V 输入、6A 同步降压转换器 8-SO PowerPAD -40 to 85
The TPS566250 is a synchronous buck converter that enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count and low standby current solution.
After the initial power-up, the output voltage can be changed by codes sent to the IC via an I2C compatible VID Control bus.
The main control loops of the TPS566250 use the D-CAP2™ mode control which provides a fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Advanced Eco-mode™ operation at light loads. Advanced Eco-mode™ allows the TPS566250 to maintain high efficiency during lighter load conditions. The TPS566250 is able to adapt to both low equivalent series resistance ESR output capacitors such as POSCAP or SP-CAP, and ultra-low ESR, ceramic capacitors.
The device offers on chip overcurrent, undervoltage lockout and thermal shutdown protection.
输出接口数 1
输出电压 0.6V ~ 1.87V
输出电流 6 A
静态电流 900 µA
调节输出数 1
开关频率 650 kHz
拓扑结构 Buck
输入电压Max 17 V
输入电压Min 4.5 V
输出电压Max 1.87 V
输出电压Min 0.6 V
输出电流Max 6 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 17 V

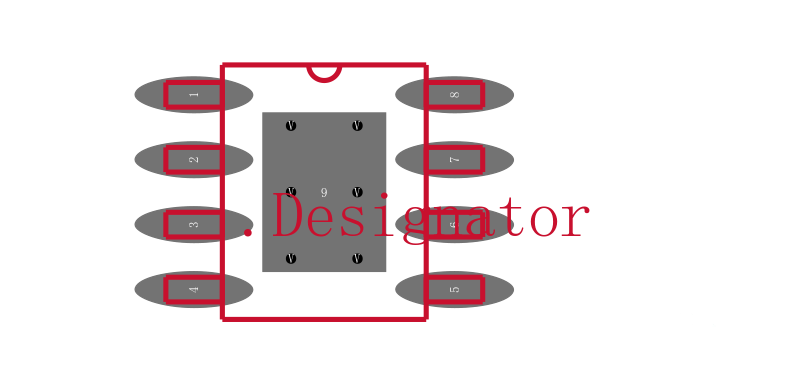

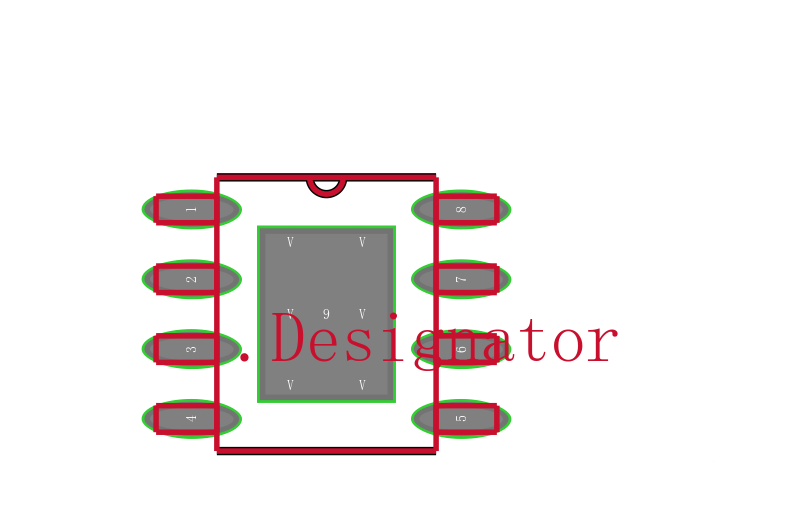

安装方式 Surface Mount

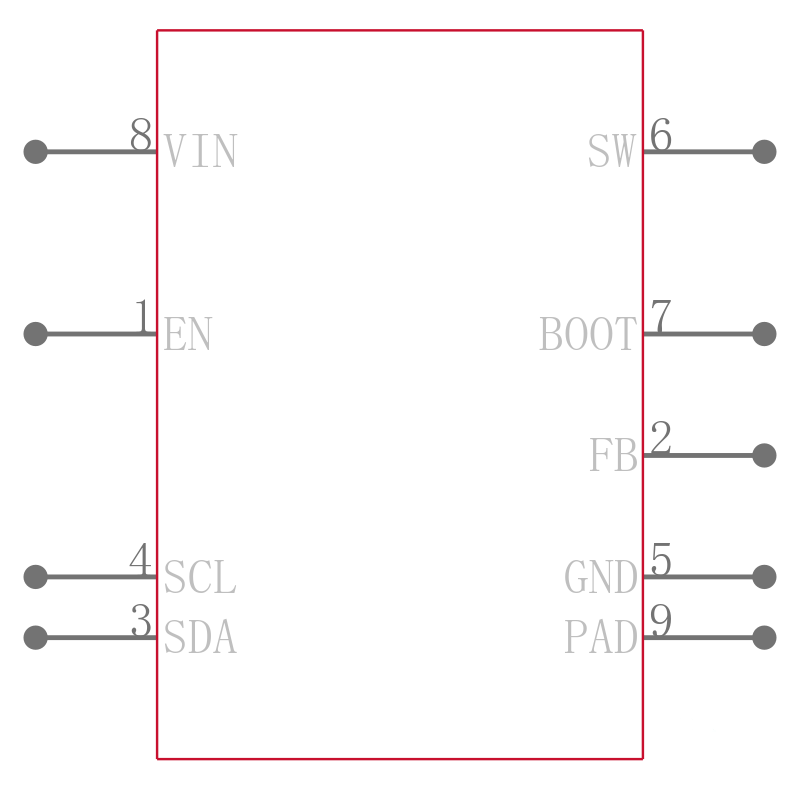

引脚数 8

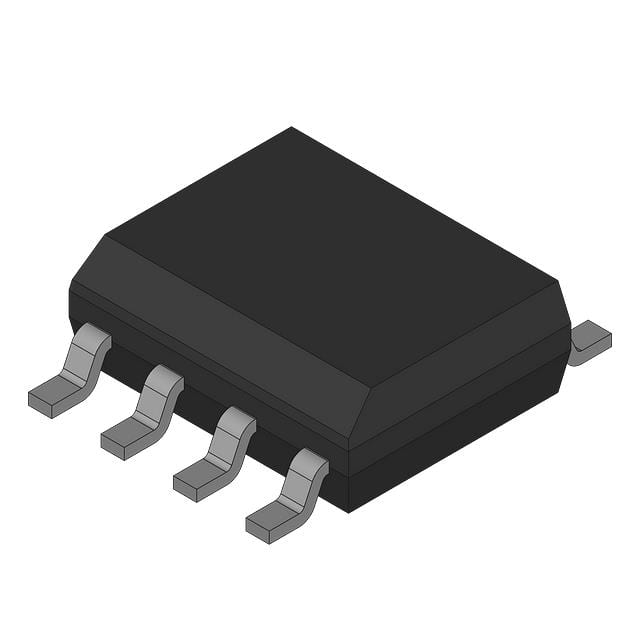

封装 HSOP-8
封装 HSOP-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
