TPS2150IPWPG4

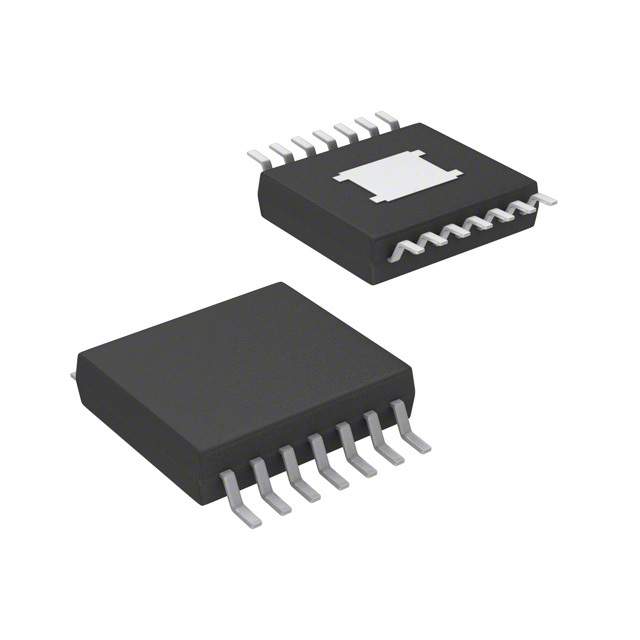

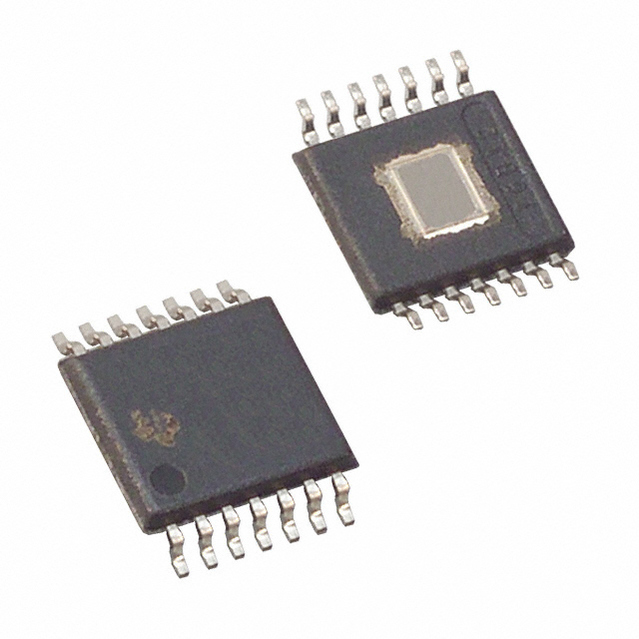

TPS2150IPWPG4图片1
TPS2150IPWPG4图片2
TPS2150IPWPG4图片3
TPS2150IPWPG4图片4
TPS2150IPWPG4图片5
TPS2150IPWPG4概述

Adjustable LDO Plus 3.3V Switch with Dual Current Limit for High Power USB Peripherals 14-HTSSOP -40℃ to 85℃

DESCRIPON

The TPS2140/41/50/51 is a USB 1.0 and 2.0 Specification-compatible IC containing a dual-current limiting power switch and an adjustable low dropout regulator LDO. Both the switch and LDO limit inrush current by controlling the turnon slew rate. The unique dual-current-limiting feature of the switch allows USB peripherals to utilize high-value capacitance at the output of the switch, while keeping the inrush current low. During turnon, the switch limits the current delivered to the capacitive load to less than 100 mA.

FEATURES

Complete Power Management Solution for USB High-Power Peripherals

250 mA Low-Dropout Regulator LDO With Enable and 325 mA Typ Current Limit

LDO Supports 2.7V to 5.5V VIN and 0.9V to 3.3V Adjustable VOUT

40 mΩTyp High-Side MOSFET With Dual Current Limit

Undervoltage Lockout and Power Good for LDO and Switch

CMOS- and TTL-Compatible Enable Inputs

85 µA Typ Supply Current

5 µA Typ Standby Supply Current

Available in 14-Pin HTSSOP PowerPAD™

–40°C to 85°C Ambient Temperature Range

Alternative to TPS2148/58 3.3-V LDO With 3.3-V Switch and 5-V Switch

TPS2150IPWPG4中文资料参数规格
技术参数

输出接口数 1

输入电压DC 5.50 V

供电电流 85 µA

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 2.7V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 2.7 V

封装参数

安装方式 Surface Mount

引脚数 14

封装 HTSSOP-14

外形尺寸

高度 1.05 mm

封装 HTSSOP-14

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

TPS2150IPWPG4引脚图与封装图

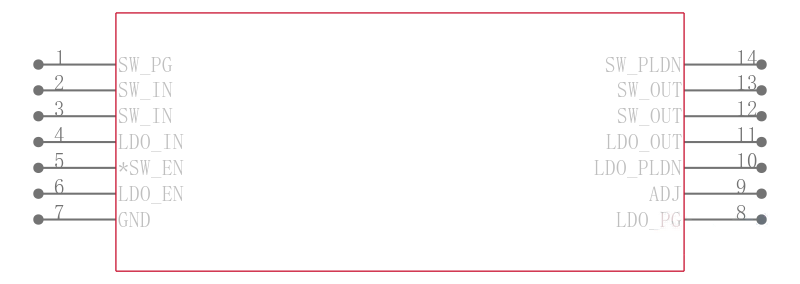

TPS2150IPWPG4引脚图

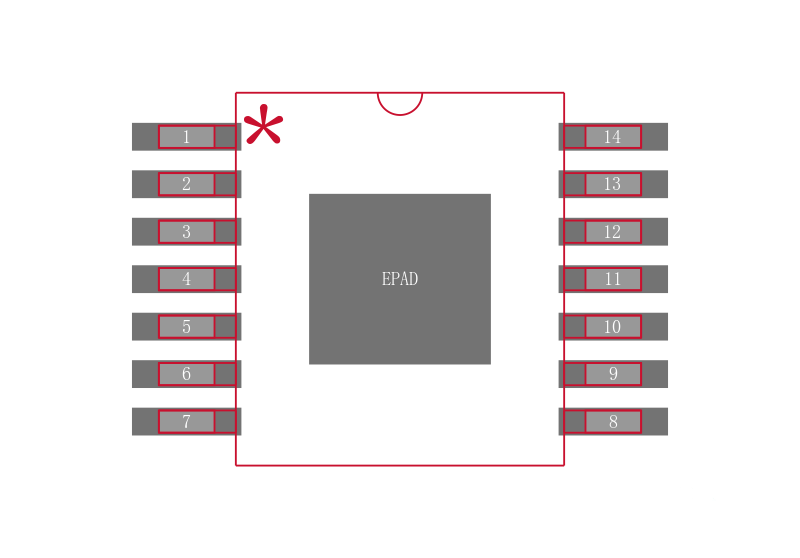

TPS2150IPWPG4封装图

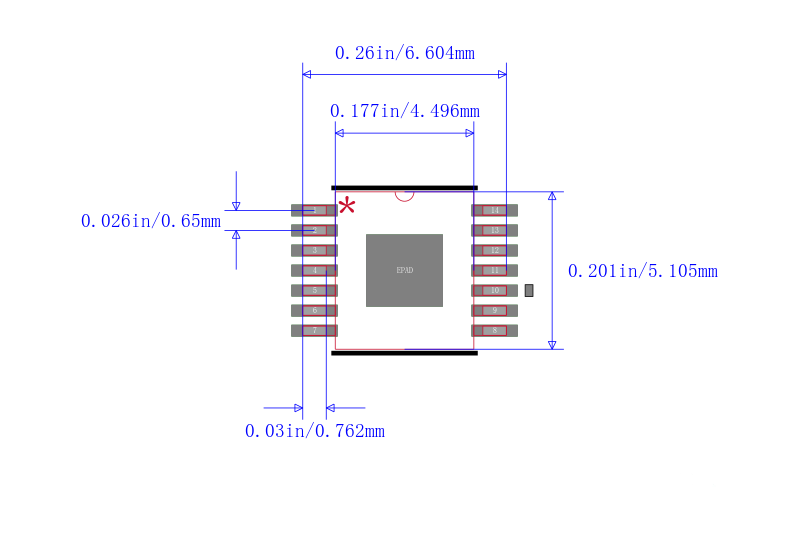

TPS2150IPWPG4封装焊盘图
在线购买TPS2150IPWPG4
型号: TPS2150IPWPG4
制造商: TI 德州仪器
描述:Adjustable LDO Plus 3.3V Switch with Dual Current Limit for High Power USB Peripherals 14-HTSSOP -40℃ to 85℃
替代型号TPS2150IPWPG4
型号/品牌 代替类型 替代型号对比

TPS2150IPWPG4

TI 德州仪器

当前型号

当前型号

TPS2150IPWP

德州仪器

完全替代

TPS2150IPWPG4和TPS2150IPWP的区别

TPS2140IPWP

德州仪器

完全替代

TPS2150IPWPG4和TPS2140IPWP的区别

TPS2150IPWPR

德州仪器

完全替代

TPS2150IPWPG4和TPS2150IPWPR的区别
