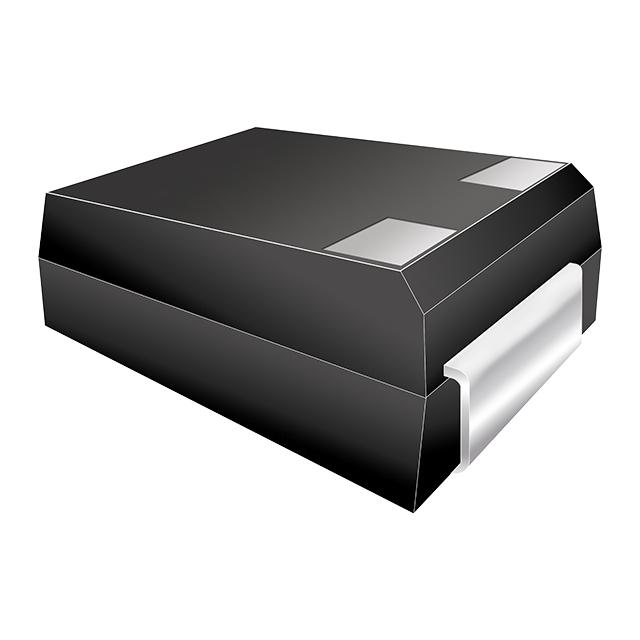

KEMET T520L107M010ATE025 钽电容, 100uF, 10V, 20%, 2312
A high dielectric permittivity can be applied when trying to filter out high frequencies. This polymer electrolyte manufactured from Kemet will do just that, getting you optimal results. It can withstand a voltage of 10 VDC. It has 2 terminals. This product is 6 mm long, 1.9Max mm tall and 3.2 mm deep. Its leakage current is 100 μA. Its capacitance value is 100uF. This polymer electrolyte has a minimum operating temperature of -55 °C and a maximum of 105 °C.
额定电压DC 10 V
电容 100 µF
等效串联电阻ESR 0.025 Ω
容差 ±20 %
产品系列 T520
纹波电流 2400 mA
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
封装 6032
长度 6 mm
宽度 3.2 mm
高度 1.8 mm
封装 6032
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
寿命（小时） 2000h @105℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
T520L107M010ATE025 KEMET Corporation 基美 | 当前型号 | 当前型号 |
TLJA107M010R1400 艾维克斯 | 功能相似 | T520L107M010ATE025和TLJA107M010R1400的区别 |
T498D107K010ATE600 基美 | 功能相似 | T520L107M010ATE025和T498D107K010ATE600的区别 |
TLJT107M010R0900 艾维克斯 | 功能相似 | T520L107M010ATE025和TLJT107M010R0900的区别 |
