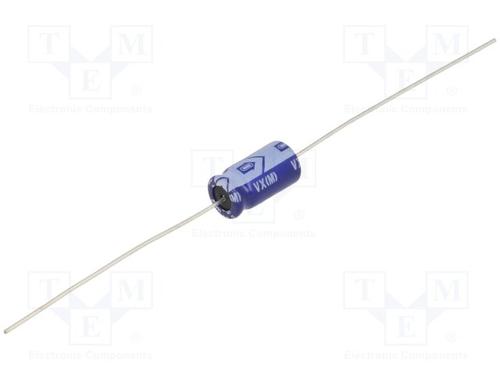

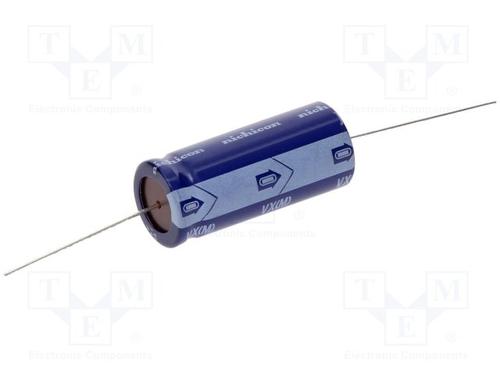

Cap Aluminum Lytic 22uF 450V 20% 16 X 31.5mm Axial 150mA 2000H 85℃
Choose this electrolytic aluminum capacitor from for its relatively high ESR. It can withstand a voltage of 450 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. This product is 31.5 mm long with a diameter of 16 mm. Its capacitance value is 22uF. The TVX2W220MCD aluminum electrolytic capacitor has an axial termination style. This part has a lead diameter of 0.8 mm. It has a tolerance of 20%.
额定电压DC 450 V
工作电压 450 VDC
电容 22 µF
容差 ±20 %
纹波电流 150 mA
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 450 V
安装方式 Through Hole
引脚数 2
封装 Axial, Can
高度 31.5 mm
直径 16.0 mm
脚长度 35.0 mm
封装 Axial, Can
介质材料 Aluminum Electrolytic
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Each
寿命（小时） 2000h @85℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
