10uF ±10% 35V Φ6.30mm 10.2mm

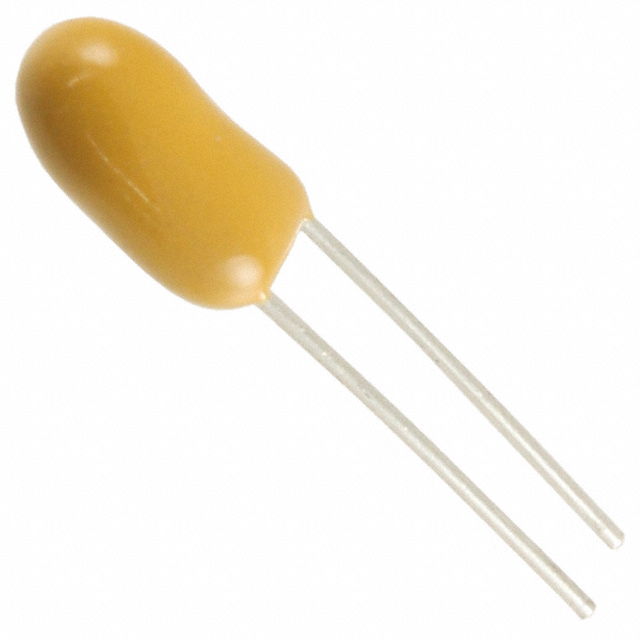

This solid tantalum capacitor from Kemet utilizes a three-layer conductor-dielectric-conductor capacitor structure. Users like its straight wire form. It can withstand a voltage of 35 VDC. This part has a pitch of 2.54 mm. This solid capacitor has a maximum operating temperature of 125 °C. Its leakage current is 2.8 μA. It has a tolerance of 10%. Its capacitance value is 10uF. This product is 10.2Max mm tall with a diameter of 6.3Max mm. The T350G106K035AS solid capacitor has a radial termination style.
额定电压DC 35.0 V
电容 10 µF
等效串联电阻ESR 2 Ω
容差 ±10 %
产品系列 T350
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 35 V
安装方式 Through Hole
封装 Radial
引脚间距 2.54 mm
长度 10.2 mm
高度 10.2 mm
直径 6.30 mm
封装 Radial
引脚间距 2.54 mm
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
最小包装 1
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
T350G106K035AS KEMET Corporation 基美 | 当前型号 | 当前型号 |
T350G106K035AT 基美 | 功能相似 | T350G106K035AS和T350G106K035AT的区别 |
