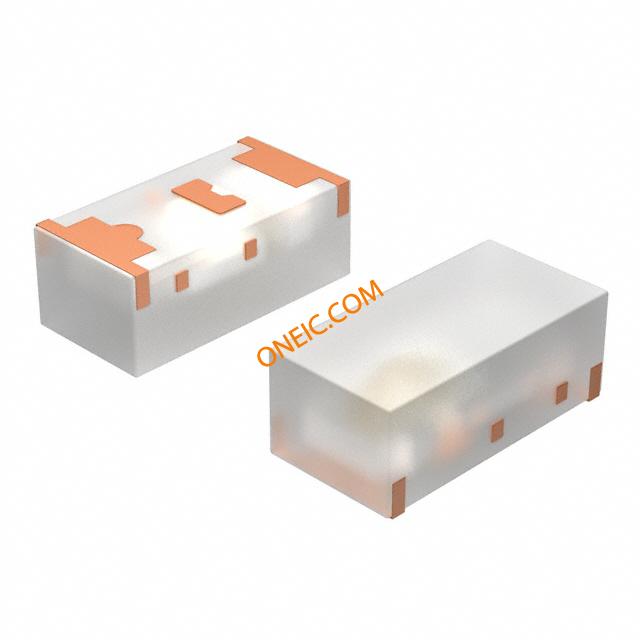

TLMY1100-GS08

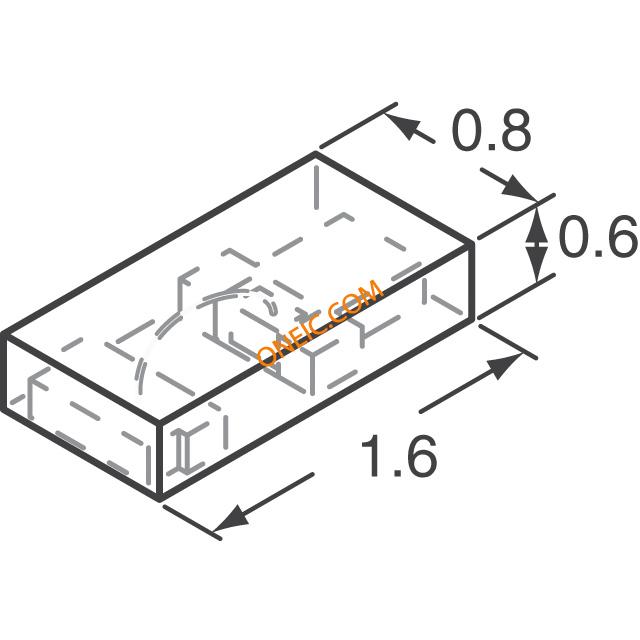

VISHAY  TLMY1100-GS08  发光二极管, 黄色, SMD, 1.6mm x 0.8mm, 20 mA, 2.1 V, 587 nm

The is a standard SMD for use with backlight keypads, navigation systems and displays for industrial control systems. The new chip LED series has been designed in the smallest SMD package. This innovative chip LED technology opens the way to smaller products of higher performance, more design in flexibility and enhanced applications. The 0603 LED is an obvious solution for small-scale, high brightness products that are expected to work reliably in an arduous environment.

.

AlInGaP technology

.

High reliability lead frame based

.

Compatible to IR reflow soldering

.

Preconditioning according to JEDEC® level 2

.

12V Reverse voltage

.

90mW Power dissipation
