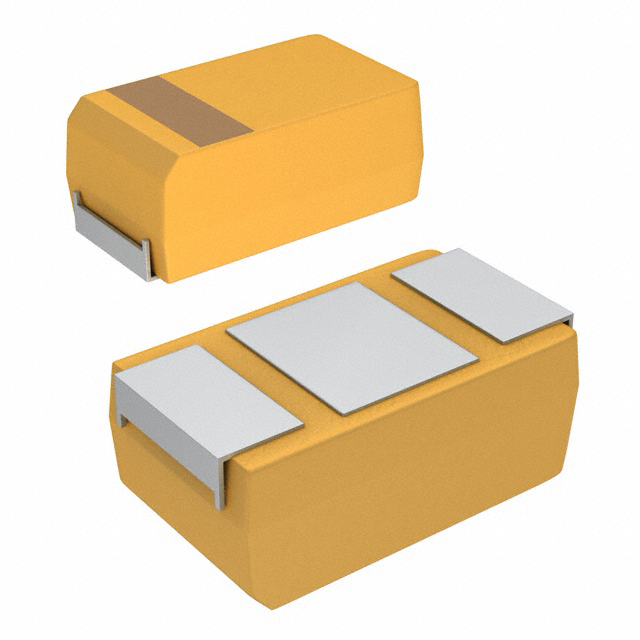

KEMET T520D476M016ATE070. 钽电容, 47uF 20%容差 16V
钽器
得捷:
CAP TANT POLY 47UF 16V 2917
立创商城:
47uF ±20% 16V
贸泽:
Tantalum Capacitors - Polymer SMD 16V 47uF 20% "D"
e络盟:
钽聚合物电容器, KO-CAP®, 47 µF, 16 V, T520 系列, ± 20%, D, 0.07 ohm
艾睿:
Have a small device? Consider this T520D476M016ATE070 polymer electrolyte manufactured from Kemet for its high permittivity constant and due to this it is ideal to filter out high signals. It can withstand a voltage of 16 VDC. It has 2 terminals. Its capacitance value is 47uF. This product is 7.3 mm long, 2.8 mm tall and 4.3 mm deep. This polymer electrolyte has a minimum operating temperature of -55 °C and a maximum of 105 °C. Its leakage current is 75.2 μA.
Allied Electronics:
Capacitor; Tantalum; 47 uF; 20%; 16 VDC; SMT; 7343 mm; ESR 0.070 Ohms; Tape & Reel
安富利:
Cap Tant Solid 47uF 16V D CASE 20% 7.3 X 4.3 X 2.8mm SMD 7343-31 0.07 Ohm 105°C T/R
Chip1Stop:
Cap Tant Solid 47uF 16V D CASE 20% 7.3 X 4.3 X 2.8mm SMD 7343-31 0.07 Ohm 105 C T/R
TME:
Capacitor: tantalum-polymer; 47uF; 16VDC; Case: D; 2917; ESR:70mΩ
Verical:
Cap Tant Polymer 47uF 16VDC D CASE 20% 7.3 X 4.3 X 2.8mm SMD 7343-31 0.07 Ohm 105C T/R
Newark:
# KEMET T520D476M016ATE070 Surface Mount Tantalum Capacitor, 47 µF, 16 V, T520 Series, 2917 [7343 Metric], -55 °C
Win Source:
CAP TANT POLY 47UF 16V 2917
额定电压DC 16 V
电容 47 µF
等效串联电阻ESR 0.07 Ω
容差 ±20 %
产品系列 T520
纹波电流 4.6 A
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 16 V
安装方式 Surface Mount
引脚数 2
封装公制 7343-31
封装 7343
长度 7.3 mm
宽度 4.3 mm
高度 2.8 mm
封装公制 7343-31
封装 7343
介质材料 Tantalum
工作温度 -55℃ ~ 105℃
产品生命周期 Not Recommended
包装方式 Tape & Reel TR
最小包装 500
寿命(小时) 2000h @105℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
T520D476M016ATE070 KEMET Corporation 基美 | 当前型号 | 当前型号 |
T520V476M016ATE070 基美 | 类似代替 | T520D476M016ATE070和T520V476M016ATE070的区别 |
T520D476M016ASE070 基美 | 类似代替 | T520D476M016ATE070和T520D476M016ASE070的区别 |
T520D476M016AHE070 基美 | 类似代替 | T520D476M016ATE070和T520D476M016AHE070的区别 |
