与电压三倍功率CMOS驱动器 Power CMOS Drivers With Voltage Tripler
Use the power driver from Technology for fast switching. This device has a maximum propagation delay time of 55 ns and a maximum power dissipation of 760 mW. Its maximum power dissipation is 760 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device has a minimum operating supply voltage of 4 V and a maximum of 6 V. This gate driver has a minimum operating temperature of 0 °C and a maximum of 70 °C.
电源电压DC 4.00V min
工作电压 4.5V ~ 18V
上升/下降时间 33ns, 27ns
输出接口数 1
输出电流 1.5 A
供电电流 2.50 mA
通道数 2
耗散功率 760 mW
下降时间Max 35 ns
上升时间Max 40 ns
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 760 mW
电源电压 4V ~ 6V
电源电压Max 6 V
电源电压Min 4 V
安装方式 Surface Mount
引脚数 16

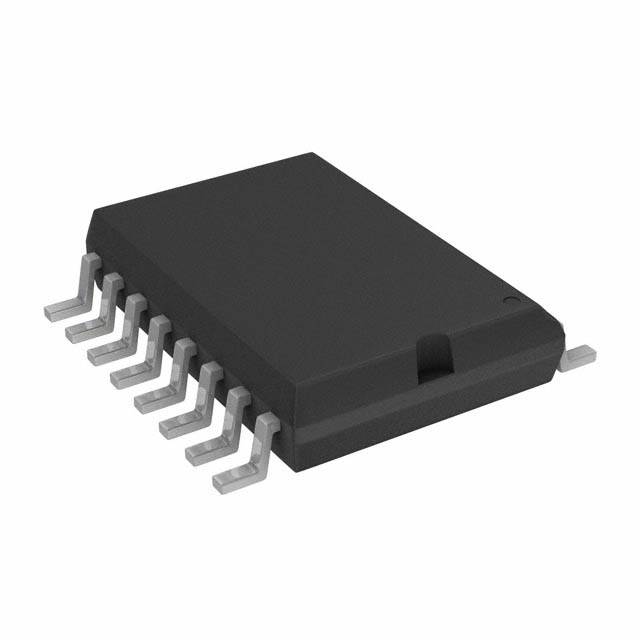

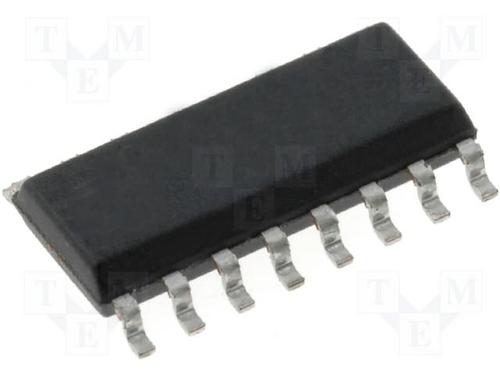

封装 SOIC-16
封装 SOIC-16
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TC4626COE Microchip 微芯 | 当前型号 | 当前型号 |
TC4626COE713 微芯 | 完全替代 | TC4626COE和TC4626COE713的区别 |
