监控电路 Mil Enhance Micropwr Supply Vltg Sup
This supply voltage supervisory voltage monitor IC from Texas Instruments will make sure components in your circuit won"t get hit by unwanted voltage spikes. This device has a maximum power dissipation of 525 mW. Its maximum power dissipation is 525 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has a typical reset threshold voltage of 1.1 V, with a minimum of 1.04 V and a maximum of 1.16 V. This voltage supervisor IC has a minimum operating temperature of -55 °C and a maximum of 125 °C. This device has a minimum operating supply voltage of 2 V and a maximum of 6 V.
耗散功率 525 mW
静态电流 9.00 µA
阈值电压 1.1 V
复位电压Min 1.04 V
复位电压Max 1.16 V
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 525 mW
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 8

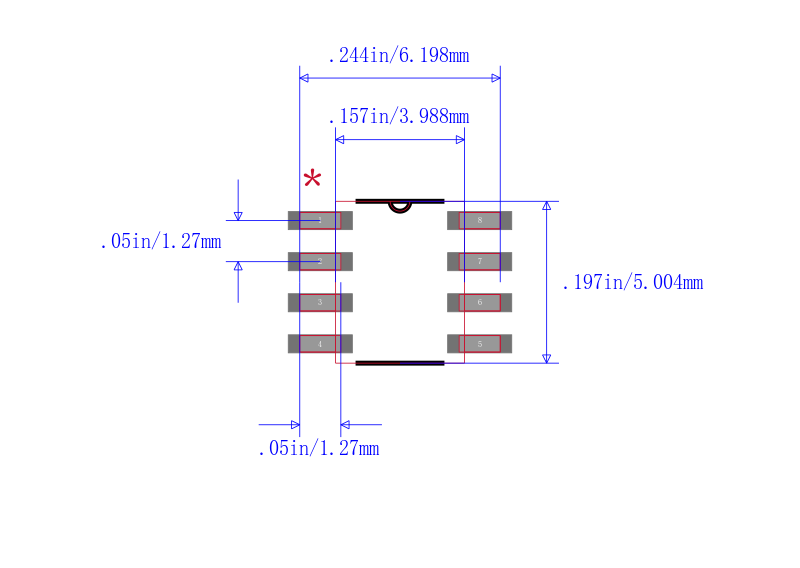

封装 SOIC-8
长度 4.9 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-8
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLC7701MDREP TI 德州仪器 | 当前型号 | 当前型号 |
V62/04604-04YE 德州仪器 | 完全替代 | TLC7701MDREP和V62/04604-04YE的区别 |
TLC7701ID 德州仪器 | 类似代替 | TLC7701MDREP和TLC7701ID的区别 |
TLC7701QD 德州仪器 | 类似代替 | TLC7701MDREP和TLC7701QD的区别 |
