1.5A超LDO ,可编程软启动 1.5A Ultra-LDO with Programmable Soft-Start
PMIC - 稳压器 - 线性 正 可调式 输出 1.5A DDPAK/TO-263-7
立创商城:
TPS74201KTWR
德州仪器TI:
1.5-A, low-VIN 0.8-V, low-noise, high-PSRR, adjustable ultra-low-dropout voltage regulator
艾睿:
Say goodbye to unstable voltages with this LDO TPS74201KTWR linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.06@1.5A V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 1.5 A. It only needs a voltage of at least 0.8 V while not exceeding 5.5 V to effectively power your circuit. With an adjustable output that has a voltage of 0.796 to 3.6 V, this is power management at its best. Using a load regulation of 0.04%/ATyp and line regulation of 0.0005%/VTyp is needed for a programmable DC power supply. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its polarity is positive. The maximum dropout voltage is 0.12@1.5A V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
安富利:
LDO Regulator Pos 0.796V to 3.6V 1.5A 8-Pin7+Tab PFM T/R
Chip1Stop:
Single Channel LDO Single Output LDO, 1.5A, Adj.0.8 to 3.3V, Any or No Cap, Programmable Soft Start LDO Regulator Pos 0.796V to 3.6V 1.5A 8-Pin7+Tab TO-263 T/R
Verical:
LDO Regulator Pos 0.796V to 3.6V 1.5A 8-Pin7+Tab TO-263 T/R
Newark:
# TEXAS INSTRUMENTS TPS74201KTWR LDO Voltage Regulator, Adjustable, 800mV-5.5V in, 55mV drop., 800mV-3.6V/1.5A out, TO-263-7
DeviceMart:
IC REG LDO ADJ 1.5A D2PAK7
Win Source:
Linear Voltage Regulator IC Positive Adjustable 1 Output 0.8 V ~ 3.6 V 1.5A DDPAK/TO-263-7
输出接口数 1
输出电压 0.796V ~ 3.6V
输出电流 1.5 A
供电电流 115µA ~ 1.5mA
耗散功率 4980 W
静态电流 3.00 mA
输出电容类型 Ceramic
跌落电压 0.06V @1.5A
调节输出数 1
输入电压Max 5.5 V
输入电压Min 0.8 V
输出电压Max 3.6 V
输出电压Min 0.8 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 0.86V ~ 5.5V
安装方式 Surface Mount
引脚数 7

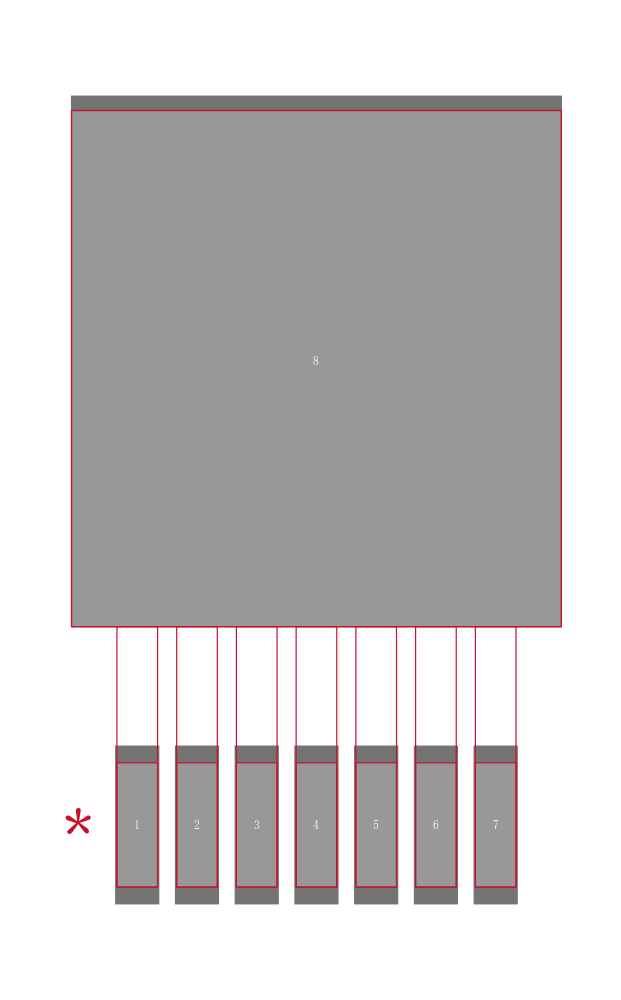

封装 TO-263-8
长度 10.1 mm
宽度 8.89 mm
高度 4.44 mm
封装 TO-263-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS74201KTWR TI 德州仪器 | 当前型号 | 当前型号 |
TPS74201KTWRG3 德州仪器 | 完全替代 | TPS74201KTWR和TPS74201KTWRG3的区别 |
TPS74201KTWT 德州仪器 | 类似代替 | TPS74201KTWR和TPS74201KTWT的区别 |
TPS74201KTWTG3 德州仪器 | 类似代替 | TPS74201KTWR和TPS74201KTWTG3的区别 |
