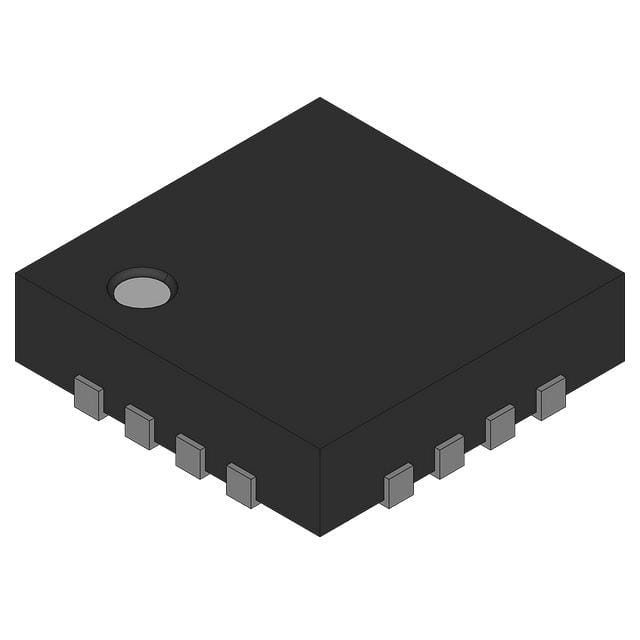

汽车类集成式 5A 40V 宽输入范围升压/SEPIC/反激式直流到直流稳压器 16-WQFN -40 to 125
升压 开关稳压器 IC 正,可提供隔离 可调式 2.9V 1 输出 5.25A(开关) 16-WFQFN 裸露焊盘
得捷:
IC REG BOOST ADJ 5.25A 16WQFN
立创商城:
升压型 Vin=2.9V~38V Vout=2.9V~38V 5.25A
德州仪器TI:
Integrated, 5-A 40-V wide input range boost/SEPIC/flyback DC/DC regulator, AEC-Q100 qualified
艾睿:
Adjust the voltage level of your devices with this step up TPS55340QRTERQ1 DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 5 A. By only needing an input voltage of 2.9 V with a maximum of 38 V, this is the best way to control the power in your circuit. With an adjustable output that has a voltage of 2.9 to 38 V, this is power management at its best. You can operate this at a switching frequency of 100 to 2500 kHz. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C. The converter is ideal for operating at an isolation of Isolated.
安富利:
Conv DC-DC Single Step Up 2.9V to 38V 16-Pin WQFN T/R
Verical:
Conv DC-DC 2.9V to 38V Step Up Single-Out 2.9V to 38V 5A Automotive 16-Pin WQFN EP T/R
DeviceMart:
IC REG BST FLYBK SEPIC 16WQFN
输出接口数 1
输出电压 2.9V ~ 38V
输出电流 5 A
静态电流 500 µA
调节输出数 1
开关频率 94kHz ~ 2.55MHz
输入电压Max 38 V
输入电压Min 2.9 V
输出电压Max 38 V
输出电压Min 2.9 V
输出电流Max 5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 38 V
安装方式 Surface Mount
引脚数 16
封装 WFQFN-16
封装 WFQFN-16
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS55340QRTERQ1 TI 德州仪器 | 当前型号 | 当前型号 |
TPS55340QRTETQ1 德州仪器 | 类似代替 | TPS55340QRTERQ1和TPS55340QRTETQ1的区别 |
