TPSE156K050R0250

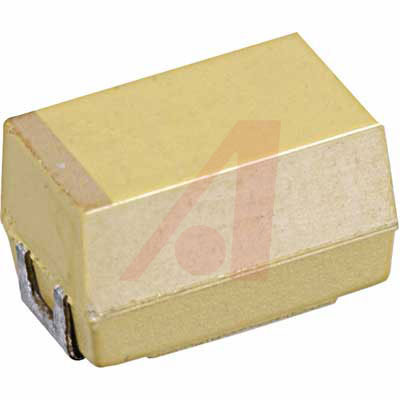

AVX  TPSE156K050R0250  表面贴装钽电容, TPS系列, 15 µF, ± 10%, 50 V, 2917 [7343 公制], E

TPS surface mount products have inherently low ESR equivalent series resistance and are capable of higher ripple current handling, producing lower ripple voltages, less power and heat dissipation than standard product for the most efficient use of circuit power.

欧时:
Tantalum Capacitor 2917 15uF 50Vdc 10%

艾睿:
The low leakage current characteristic of this TPSE156K050R0250 solid tantalum capacitor from AVX makes it suitable for sample and hold circuit applications. It can withstand a voltage of 50 VDC. This solid capacitor has a maximum operating temperature of 125 °C. Its leakage current is 7.5 μA. It has a tolerance of 10%. This product is 7.3 mm long, 4.1 mm tall and 4.3 mm deep. Its capacitance value is 15uF.

Allied Electronics:
Capacitor; Tantalum; Cap 15 uF; Tol 10%; SMT; Vol-Rtg 50V; Low ESR; Cut Tape

安富利:
Cap Tant Solid 15uF 50V E CASE 10% 7.3 X 4.3 X 4.1mm SMD 7343-43 0.25 Ohm 125°C T/R

Chip1Stop:
Cap Tant Solid 15uF 50V E CASE 10% 7.3 X 4.3 X 4.1mm SMD 7343-43 0.25 Ohm 125A？A℃ T/R

Verical:
Cap Tant Solid 15uF 50V E CASE 10% 7.3 X 4.3 X 4.1mm Inward L SMD 7343-43 0.25 Ohm 125C T/R

Newark:
# AVX  TPSE156K050R0250  Surface Mount Tantalum Capacitor, 15 µF, 50 V, TPS Series, ± 10%, 2917 [7343 Metric]

儒卓力:
**TC 15uF 50V 10% Case E 250mOhm **

Win Source:
15μF Molded Tantalum Capacitors 50V 2917 7343 Metric 250 mOhm 0.287" L x 0.169" W 7.30mm x 4.30mm
