双重或2相，可堆叠控制器 DUAL OR 2-PHASE, STACKABLE CONTROLLER
The high performance synchronous buck DC voltage controller from Texas Instruments is a great way to change DC voltage levels in your circuit. Its output produces a current of 25Max A. This DC voltage controller has 2 outputs. With an output that has a voltage of 0.7 to 5.8 V, this is power management at its best. This DC voltage controller has an input voltage of 1 to 40 V. Its switching regulator has a frequency of 150 to 1000 kHz. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 4.50V min
输出接口数 2
输出电压 0.7V ~ 5.8V
输出电流 25 A
耗散功率 2000 mW
静态电流 2.80 mA
调节输出数 2
输出功率 2 W
开关频率 150kHz ~ 1MHz
过温保护 Yes
占空比 87.5 %
输入电压Max 40 V
输入电压Min 1 V
输出电流Max 25 A
最大占空比 0.875
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 2000 mW
电源电压 2V ~ 40V
电源电压Max 15 V
电源电压Min 4.5 V
输入电压 1V ~ 40V
安装方式 Surface Mount

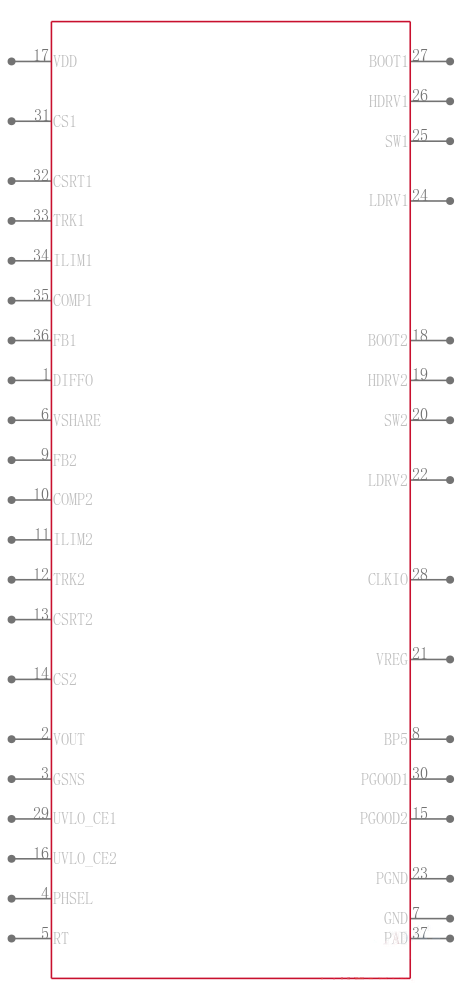

引脚数 36

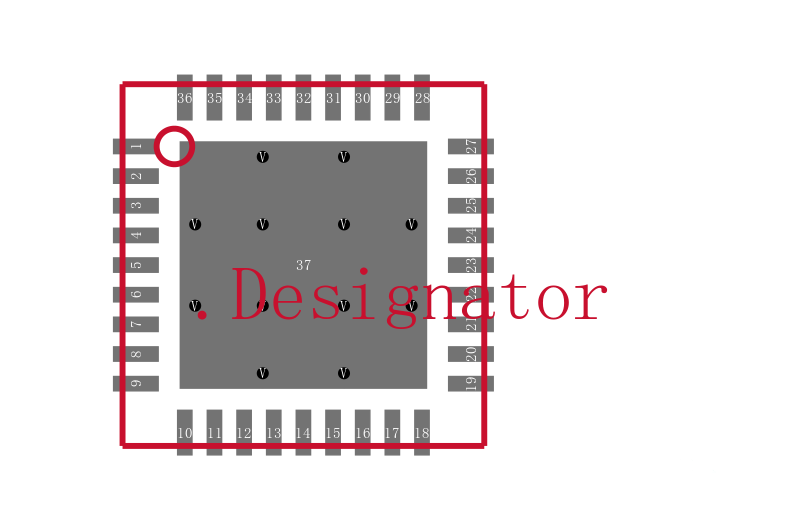

封装 VQFN-36
封装 VQFN-36
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPS40140RHHR TI 德州仪器 | 当前型号 | 当前型号 |
TPS40140RHHT 德州仪器 | 完全替代 | TPS40140RHHR和TPS40140RHHT的区别 |
TPS40140RHHTG4 德州仪器 | 完全替代 | TPS40140RHHR和TPS40140RHHTG4的区别 |
TPS40140RHHRG4 德州仪器 | 类似代替 | TPS40140RHHR和TPS40140RHHRG4的区别 |
