TEXAS INSTRUMENTS TPS54540DDAR 直流-直流开关降压, 逐步递降稳压器, 可调, 4.5V-42V输入, 0.8V-41.1V/5A输出, 2.5MHz, HSOIC-8 新
The is a 4.5V to 42V input, 5A, step down DC/DC converter with Eco-mode in 8 pin HSOIC package. This step down regulator with an integrated high side MOSFET, the device survives load dump pulses up to 45V per ISO 7637. Current mode control provides simple external compensation and flexible component selection. A low ripple pulse skip mode reduces the no load supply current to 146µA. Shutdown supply current is reduced to 2µA when the enable pin is pulled low. Undervoltage lockout is internally set at 4.3V but can be increased using the enable pin. The output voltage start up ramp is internally controlled to provide a controlled start up and eliminate overshoot. A wide switching frequency range allows either efficiency or external component size to be optimized. Output current is limited cycle-by-cycle. Frequency foldback and thermal shutdown protects internal and external components during an overload condition. It is used in USB dedicated charging ports and battery.
ESD sensitive device, take proper precaution while handling the device.
输出接口数 1
输出电压 0.8V ~ 41.1V
输出电流 5 A
针脚数 8
静态电流 146 µA
调节输出数 1
开关频率 100kHz ~ 2.5MHz
拓扑结构 Buck
输入电压Max 42 V
输入电压Min 4.5 V
输出电压Max 41.1 V
输出电压Min 800 mV
输出电流Max 5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5 V
输入电压 42 V
安装方式 Surface Mount
引脚数 8

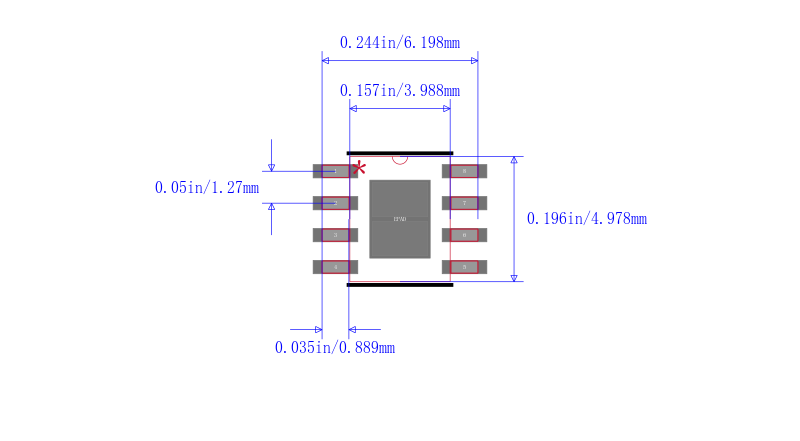

封装 HSOP-8
封装 HSOP-8
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 车用, 电机驱动与控制, 消费电子产品, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS54540DDAR TI 德州仪器 | 当前型号 | 当前型号 |
TPS54540DDA 德州仪器 | 类似代替 | TPS54540DDAR和TPS54540DDA的区别 |
TPS54540QDDAQ1 德州仪器 | 类似代替 | TPS54540DDAR和TPS54540QDDAQ1的区别 |
TPS54560QDDARQ1 德州仪器 | 类似代替 | TPS54540DDAR和TPS54560QDDARQ1的区别 |
