TPS54340QDDARQ1 编带
The TPS54340-Q1 device is a 42-V, 3.5-A, step-down regulator with an integrated high-side MOSFET. The device survives load-dump pulses up to 45 V per ISO 7637. Current-mode control provides simple external compensation and flexible component selection. A low-ripple pulse-skip mode reduces the no-load supply current to 146 µA. Shutdown supply current is reduced to 1 µA when the enable pin is pulled low.
Undervoltage lockout is internally set at 4.3 V but can be increased using an external resistor divider at the enable pin. The output voltage start-up ramp is internally controlled to provide a controlled start-up and eliminate overshoot.
A wide adjustable frequency range allows for optimization of either efficiency or external component size. Frequency foldback and thermal shutdown protects internal and external components during an overload condition.

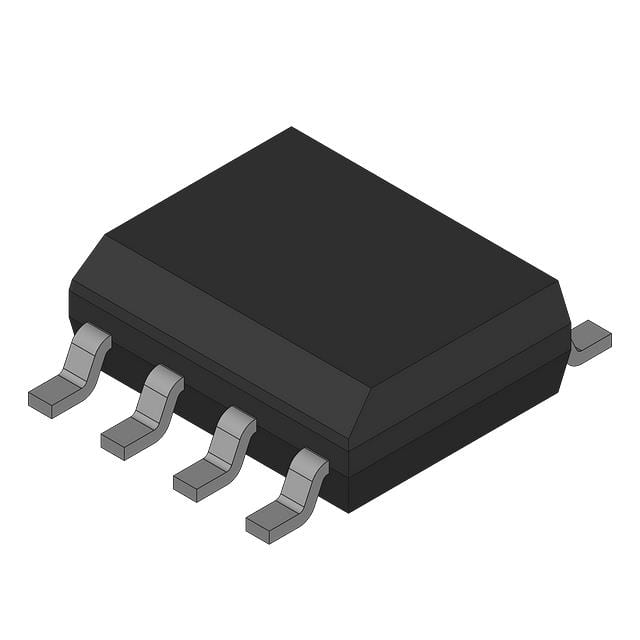

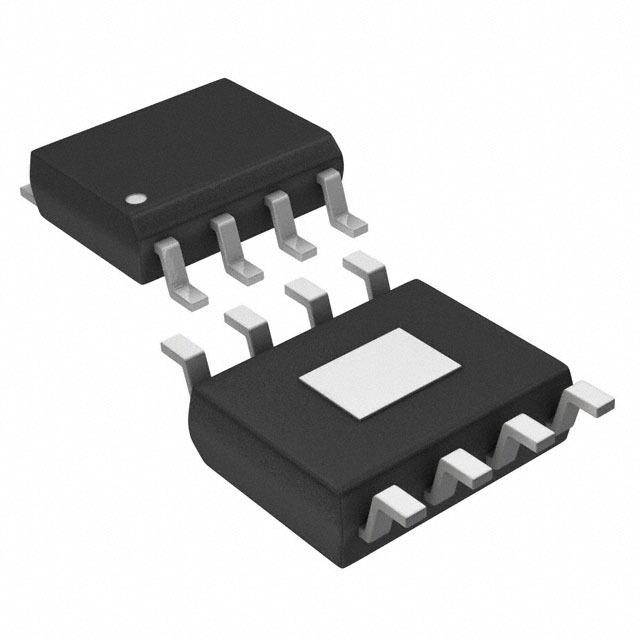

The TPS54340-Q1 device is available in an 8-pin thermally-enhanced HSOIC PowerPAD package.
输出接口数 1
输出电压 0.8V ~ 41V
输出电流 3.5 A
静态电流 146 µA
调节输出数 1
开关频率 100kHz ~ 2.5MHz
输入电压Max 42 V
输入电压Min 4.5 V
输出电压Max 41 V
输出电压Min 0.8 V
输出电流Max 3.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 42 V
安装方式 Surface Mount
引脚数 8

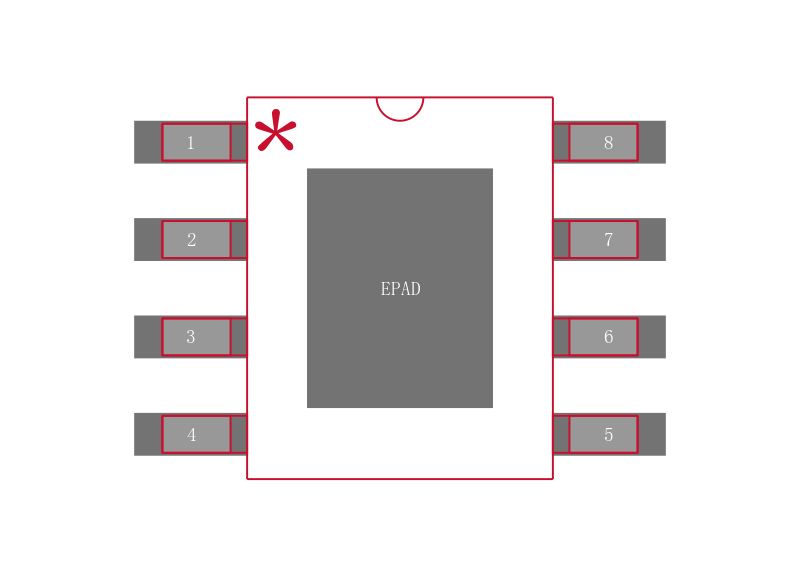

封装 HSOP-8
高度 1.55 mm
封装 HSOP-8
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
