具有 NMOS LDO 控制器的同步降压 PWM 控制器 24-TSSOP -40 to 85
Thanks to Texas Instruments" synchronous buck DC voltage controller, you"ll be able to accurately increase or decrease the DC voltage within your electronic circuit. This DC voltage controller has 2 outputs. With an output that has a voltage of 0.9 to 3.5 V, this is power management at its best. This DC voltage controller has an input voltage of 4.5 to 28 V. It has a switching frequency of 500 kHz. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This DC voltage controller has an operating temperature range of -40 °C to 85 °C.
电源电压DC 28.0 V
输出接口数 2
输出电压 0.9V ~ 3.5V
输出电流 1.20 A
耗散功率 1404 mw
静态电流 900 µA
调节输出数 2
开关频率 300 kHz
拓扑结构 Buck
输入电压Max 28 V
输入电压Min 4.5 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1404 mW
电源电压 1.1V ~ 28V
输入电压 4.5V ~ 28V
安装方式 Surface Mount

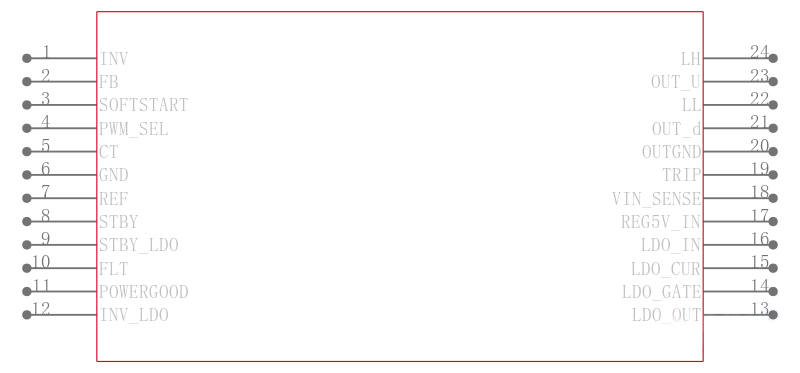

引脚数 24

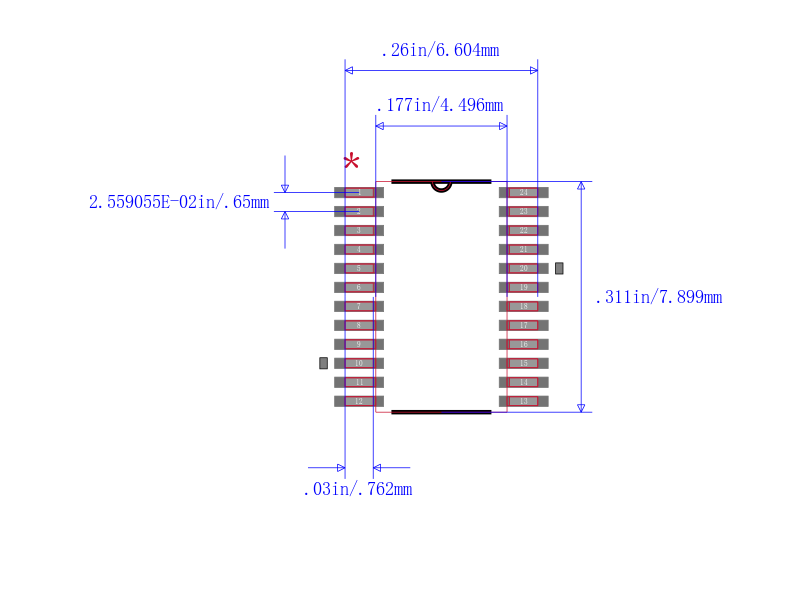

封装 TSSOP-24
封装 TSSOP-24
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS5110PW TI 德州仪器 | 当前型号 | 当前型号 |
TPS5110PWR 德州仪器 | 类似代替 | TPS5110PW和TPS5110PWR的区别 |
TPS5110PWG4 德州仪器 | 类似代替 | TPS5110PW和TPS5110PWG4的区别 |
TPS5110PWRG4 德州仪器 | 功能相似 | TPS5110PW和TPS5110PWRG4的区别 |
