1.5 -A 60 -V降压SWIFT DC / DC具有Eco-Mode控制变频器 1.5-A 60-V STEP-DOWN SWIFT DC/DC CONVERTER WITH Eco-Mode CONTROL
DESCRIPON
The TPS54160 device is a 60-V 1.5-A step-down regulator with an integrated high-side MOSFET. Current-mode control provides simple external compensation and flexible component selection. A low-ripple pulse-skip mode reduces the no load, regulated output supply current to 116 μA. Using the enable pin, shutdown supply current is reduced to 1.3 μA.
FEATURES
• Qualified for Automotive Applications
• 3.5-V to 60-V Input Voltage Range
• 200-mΩ High-Side MOSFET
• High Efficiency at Light Loads With Pulse-Skipping Eco-mode™ Control Scheme
• 116-μA Operating Quiescent Current
• 1.3-μA Shutdown Current
• 100-kHz to 2.5-MHz Switching Frequency
• Synchronizes to External Clock
• Adjustable Slow Start/Sequencing
• Undervoltage and Overvoltage Power Good Output
• Adjustable Undervoltage Lockout UVLO Voltage and Hysteresis
• 0.8-V Internal Voltage Reference
• Supported by SwitcherPro™ Software Tool
APPLICATIONS
• 12-V, 24-V, and 48-V Industrial and Commercial Low Power Systems
• Aftermarket Automotive Accessories: Video, GPS, Entertainment
输出接口数 1
输出电压 0.8V ~ 58V
输出电流 1.5 A
静态电流 116 µA
调节输出数 1
开关频率 100kHz ~ 2.5MHz
过温保护 Yes
输入电压Max 60 V
输入电压Min 3.5 V
输出电压Max 58 V
输出电压Min 0.8 V
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 3.5V ~ 60V
安装方式 Surface Mount

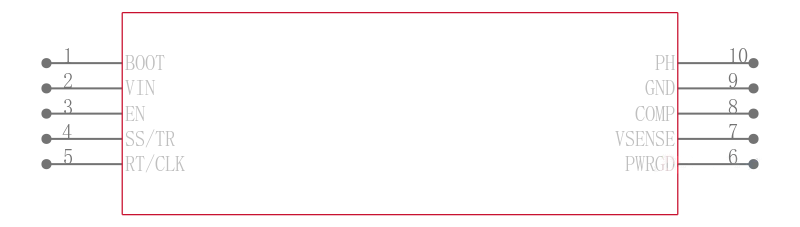

引脚数 10

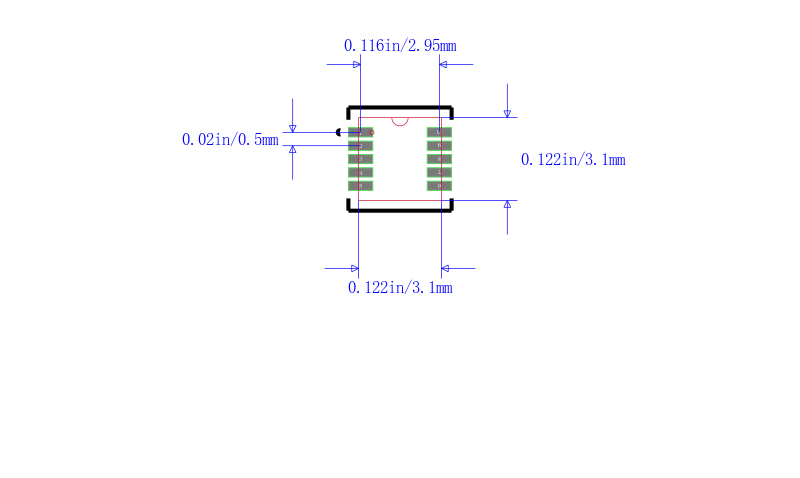

封装 VSON-10
封装 VSON-10
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS54160QDRCRQ1 TI 德州仪器 | 当前型号 | 当前型号 |
TPS57160QDRCRQ1 德州仪器 | 完全替代 | TPS54160QDRCRQ1和TPS57160QDRCRQ1的区别 |
TPS54160DGQR 德州仪器 | 类似代替 | TPS54160QDRCRQ1和TPS54160DGQR的区别 |
TPS54060DGQ 德州仪器 | 类似代替 | TPS54160QDRCRQ1和TPS54060DGQ的区别 |
