TVX1E472MCD

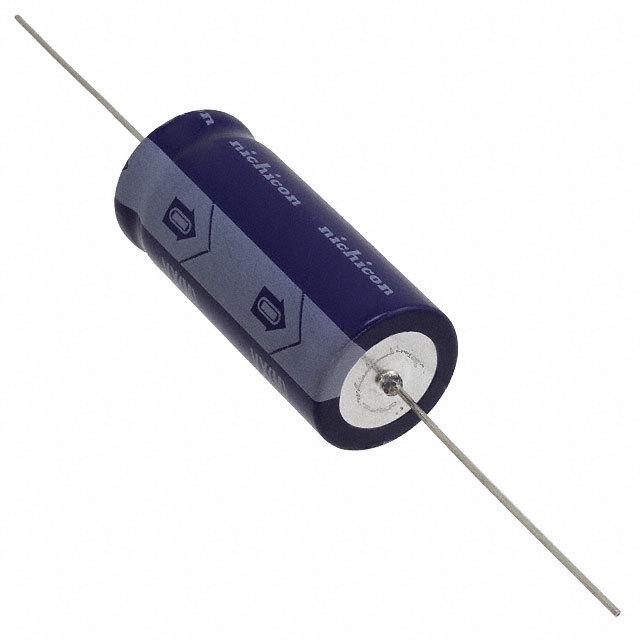

NICHICON  TVX1E472MCD  铝电解电容, 通用, VX系列, 4700 µF, ± 20%, 25 V, 18 mm, 轴向引线

4700µF 25V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C

贸泽:
Aluminum Electrolytic Capacitors - Leaded 25volts 4700uF 18x41 20%

艾睿:
Using this electrolytic TVX1E472MCD aluminum capacitor from Nichicon in your electronic circuit you&s;ll be able to generate high heat for a given current level due to its relatively high equivalent series resistance. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. Its capacitance value is 4700uF. It has a tolerance of 20%. This part has a lead diameter of 0.8 mm. Its leakage current is 4@1Min|3@2Min μA. The TVX1E472MCD aluminum electrolytic capacitor has an axial termination style. This product is 41 mm long with a diameter of 18 mm.

安富利:
Cap Aluminum 4700uF 25V 20% 18 X 41mm Axial 2170mA 2000 hr 85°C

TME:
Capacitor: electrolytic; THT; 4700uF; 25VDC; Ø18x41mm; ±20%; 2170mA

Verical:
Cap Aluminum Lytic 4700uF 25V 20% 18 X 41mm Axial 2170mA 2000h 85C

Newark:
# NICHICON  TVX1E472MCD  Electrolytic Capacitor, General Purpose, 4700 µF, 25 V, VX Series, ± 20%, Axial Leaded, 18 mm
