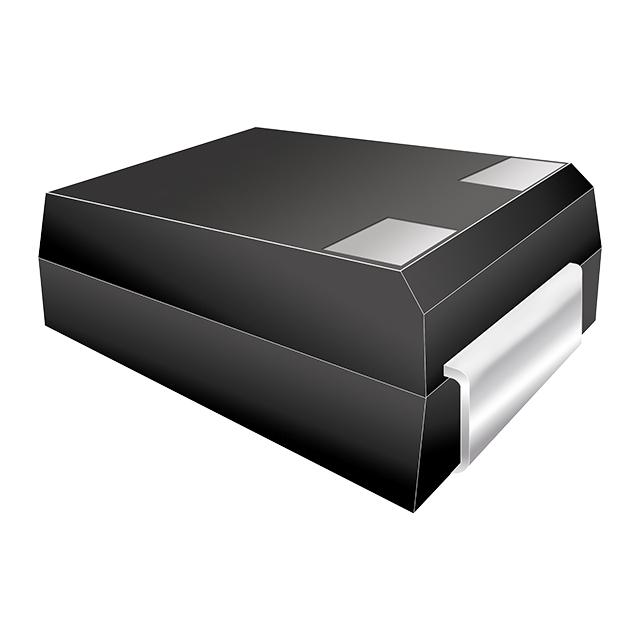

KEMET T520L227M004ATE025 表面贴装钽电容, 220 µF, 4 V, KO-CAP T520 Series, 2312 [6032 公制], -55 °C 新
This capacitor from Kemet has a high permittivity constant because it is made from tantalum polymer, which can be applied to filter out high frequencies. It can withstand a voltage of 4 VDC. It has 2 terminals. Its leakage current is 88 μA. This polymer electrolyte has a minimum operating temperature of -55 °C and a maximum of 105 °C. This product is 6 mm long, 1.9Max mm tall and 3.2 mm deep. Its capacitance value is 220uF.
额定电压DC 4.00 V
电容 220 µF
等效串联电阻ESR 0.025 Ω
容差 ±20 %
产品系列 T520
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 4 V
安装方式 Surface Mount
封装 6032
长度 6 mm
宽度 3.2 mm
高度 1.8 mm
封装 6032
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 1000
寿命（小时） 2000h @105℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
T520L227M004ATE025 KEMET Corporation 基美 | 当前型号 | 当前型号 |
T520C227M2R5ATE025 基美 | 功能相似 | T520L227M004ATE025和T520C227M2R5ATE025的区别 |
