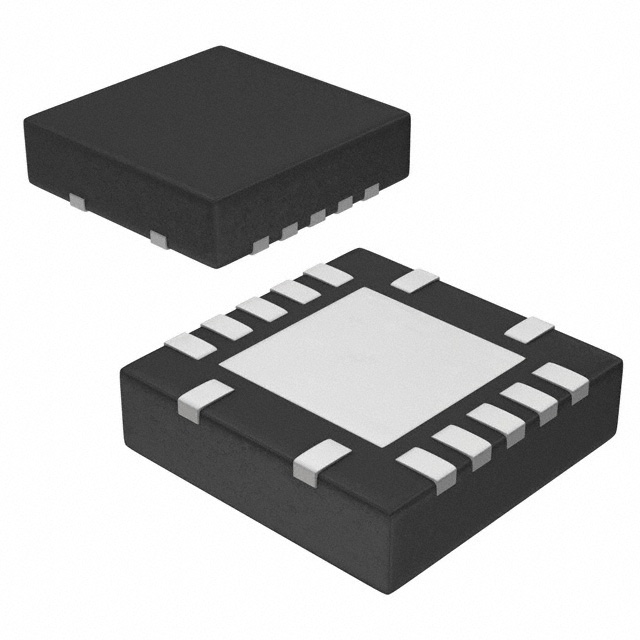

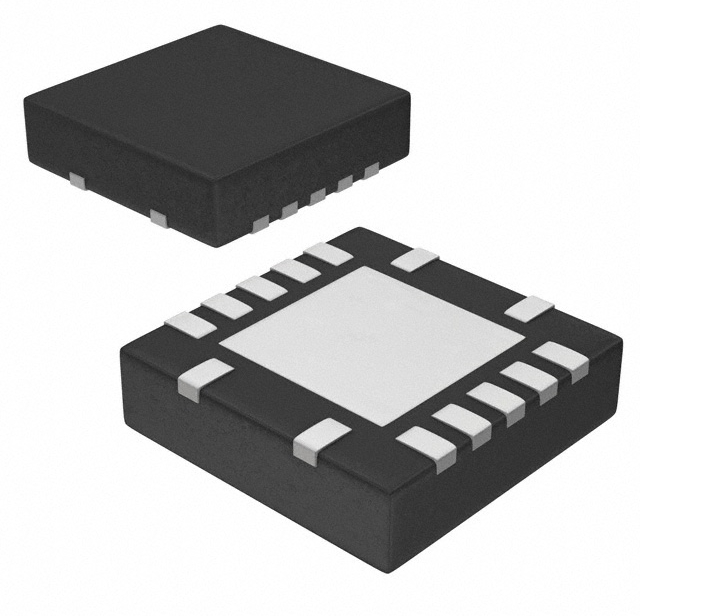

TEXAS INSTRUMENTS TPS54620RGYR 芯片, 直流/直流转换器, 降压稳压器, 1.6MHZ, VQFN-14
Description
The TPS54620 in thermally enhanced 3.50 mm x 3.50 mm QFN package is a full featured 17 V, 6-A
synchronous step down converter which is optimized for small designs through high efficiency and
integrating the high-side and low-side MOSFETs. Further space savings are achieved through current
mode control, which reduces component count, and by selecting a high switching frequency, reducing the inductor"s footprint.
Features
• Integrated 26 mΩ / 19 mΩ MOSFETs
• Split Power Rail: 1.6 V to 17 V on PVIN
• 200kHz to 1.6 MHz Switching Frequency
• Synchronizes to External Clock
• 0.8V ±1% Voltage Reference Over Temperature
• Low 2 µA Shutdown Quiescent Current
• Monotonic Start-Up into Pre-biased Outputs
• –40°C to 150°C Operating Junction Temperature Range
• Adjustable Slow Start/Power Sequencing
• Power Good Output Monitor for Undervoltage and Overvoltage
• Adjustable Input Undervoltage Lockout
• Supported by SwitcherPro™ Software Tool
• For SWIFT™ Documentation and SwitcherPro™, visit http://www.ti.com/swift
Applications
• High Density Distributed Power Systems
• High Performance Point of Load Regulation
• Broadband, Networking and Optical Communications Infrastructure
输出接口数 1
输出电压 0.8V ~ 15V
输出电流 6 A
针脚数 14
静态电流 600 µA
调节输出数 1
开关频率 200kHz ~ 1.6MHz
过温保护 Yes
拓扑结构 Buck
输入电压Max 17 V
输入电压Min 4.5 V
输出电压Max 15 V
输出电压Min 800 mV
输出电流Max 6 A
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 1.6 V
输入电压 4.5V ~ 17V
安装方式 Surface Mount
引脚数 14

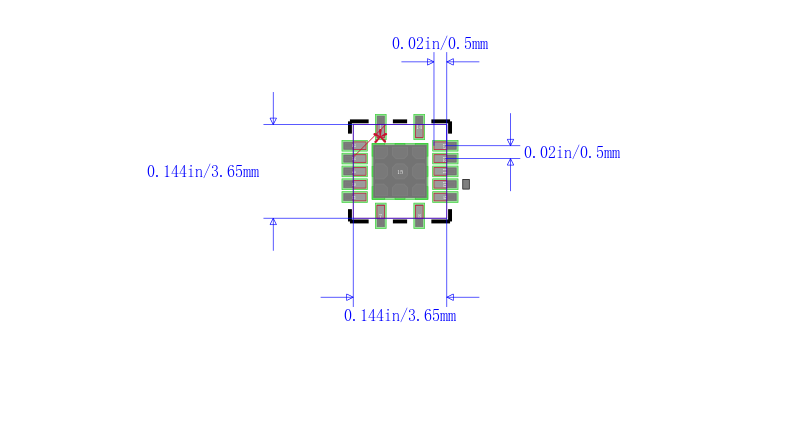

封装 VQFN-14
长度 3.5 mm
宽度 3.5 mm
高度 0.9 mm
封装 VQFN-14
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通信与网络, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
香港进出口证 NLR
