3.3V固定输出,400mA,低压差稳压器
PMIC - 稳压器 - 线性 正 固定 输出 400mA SOT-23-5
得捷:
IC REG LINEAR 3.3V 400MA SOT23-5
立创商城:
TPS73633MDBVREP
德州仪器TI:
Enhanced product, cap-free NMOS, 400-mA low-dropout regulator with reverse current protection
艾睿:
Maintain a steady voltage level with this LDO TPS73633MDBVREP linear regulator from Texas Instruments. This device has a maximum power dissipation of 556 mW. Its typical dropout voltage at current is 0.075@400mA V. It has an overall accuracy of ±0.5 %. This voltage regulation device&s;s single output can produce a current up to 0.4 A. The best way to provide power to your application is by using this, which needs a voltage of at least 1.7 V and no higher than 5.5 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 0.002%/mATyp and line regulation of 0.01%/VTyp. Its maximum power dissipation is 556 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This voltage regulation device has an operating temperature range of -55 °C to 125 °C. The maximum dropout voltage is 0.2@400mA V. Its polarity is positive.
安富利:
LDO Regulator Pos 3.3V 0.4A 5-Pin SOT-23 T/R
Chip1Stop:
LDO Regulator Pos 3.3V 0.4A 5-Pin SOT-23 T/R
Verical:
LDO Regulator Pos 3.3V 0.4A 5-Pin SOT-23 T/R
Newark:
# TEXAS INSTRUMENTS TPS73633MDBVREP Fixed LDO Voltage Regulator, 1.7V to 5.5V, 75mV Dropout, 3.3Vout, 400mAout, SOT-23-5
力源芯城:
3.3V固定输出,400mA,低压差稳压器
Win Source:
IC REG LDO 3.3V 0.4A SOT23-5
DeviceMart:
IC REG LDO 3.3V .4A SOT23-5
输出接口数 1
输入电压DC 5.50V max
输出电压 3.3 V
输出电流 400 mA
供电电流 550µA ~ 1mA
耗散功率 0.556 W
静态电流 400 µA
输出电容类型 Ceramic
跌落电压 0.075V @400mA
调节输出数 1
输入电压Max 5.5 V
输入电压Min 1.7 V
输出电压Min 3.3 V
输出电流Max 0.4 A
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 556 mW
精度 ±0.5 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 5

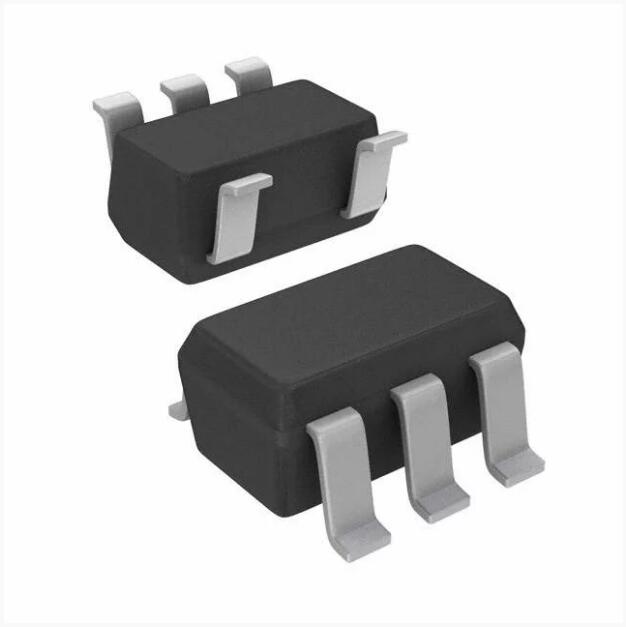

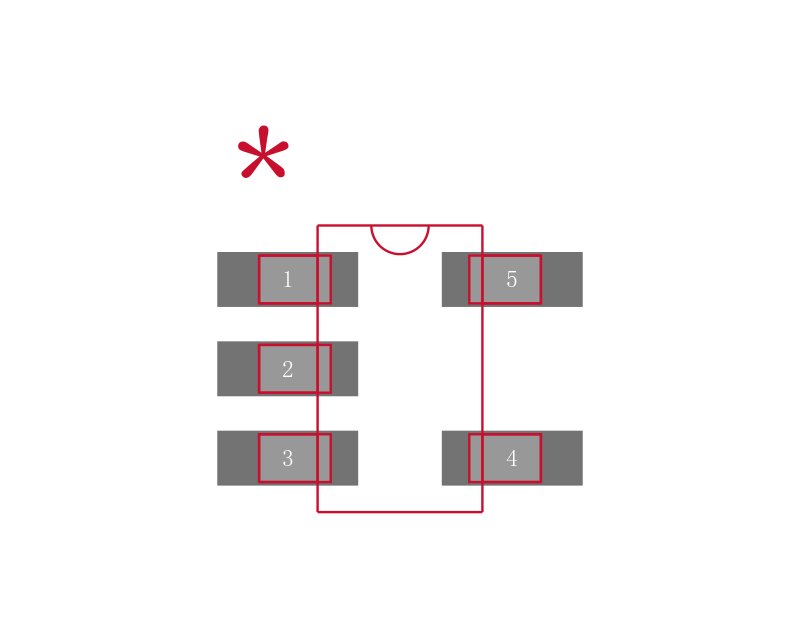

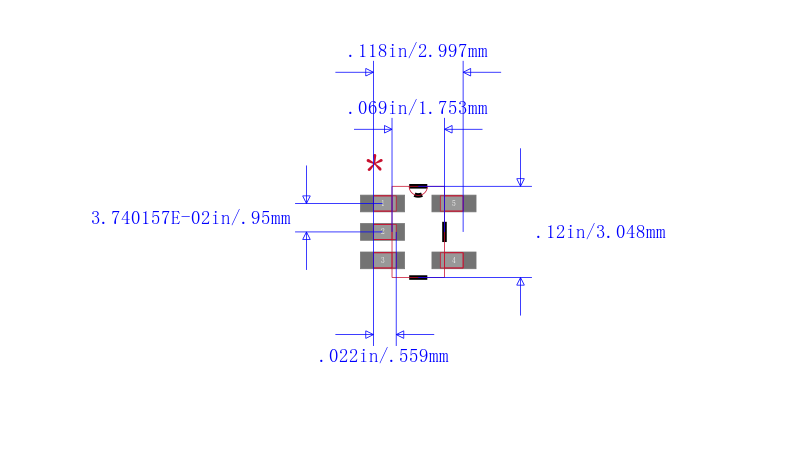

封装 SOT-23-5
封装 SOT-23-5
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS73633MDBVREP TI 德州仪器 | 当前型号 | 当前型号 |
TPS73633DBVT 德州仪器 | 完全替代 | TPS73633MDBVREP和TPS73633DBVT的区别 |
TPS73633MDBVREPG4 德州仪器 | 完全替代 | TPS73633MDBVREP和TPS73633MDBVREPG4的区别 |
TPS73633DBVR 德州仪器 | 类似代替 | TPS73633MDBVREP和TPS73633DBVR的区别 |
