快速瞬态响应1 -A低压差稳压器 FAST-TRANSIENT-RESPONSE 1-A LOW-DROPOUT VOLTAGE REGULATORS
PMIC - 稳压器 - 线性 正 固定 1 输出 1A 20-HTSSOP
得捷:
IC REG LINEAR 1.8V 1A 20HTSSOP
立创商城:
TPS76818QPWPREP
德州仪器TI:
Enhanced product, fast transient response 1-A low-dropout voltage regular
艾睿:
This LDO TPS76818QPWPREP linear regulator from Texas Instruments is used to manipulate the voltage level of your circuit. It has an overall accuracy of ±2 %. This device has a maximum power dissipation of 7200 mW. This voltage regulation device&s;s single output can produce a current up to 1 A. By only needing an input voltage of 2.7 V with a maximum of 10 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. Users like the load regulation of 3mVTyp and line regulation of 0.01%/VTyp. Its maximum power dissipation is 7200 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
安富利:
LDO Regulator Pos 1.8V 1A 20-Pin HTSSOP EP T/R
Chip1Stop:
LDO Regulator Pos 1.8V 1A 20-Pin HTSSOP EP T/R
输出接口数 1
输入电压DC 10.0V max
输出电压 1.8 V
输出电流 1 A
供电电流 125 µA
耗散功率 7200 mW
静态电流 80.0 µA
输出电容类型 Tantalum
跌落电压 230 mV
调节输出数 1
输入电压Max 10 V
输入电压Min 2.7 V
输出电压Min 1.8 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 7200 mW
精度 ±2 %
安装方式 Surface Mount
引脚数 20

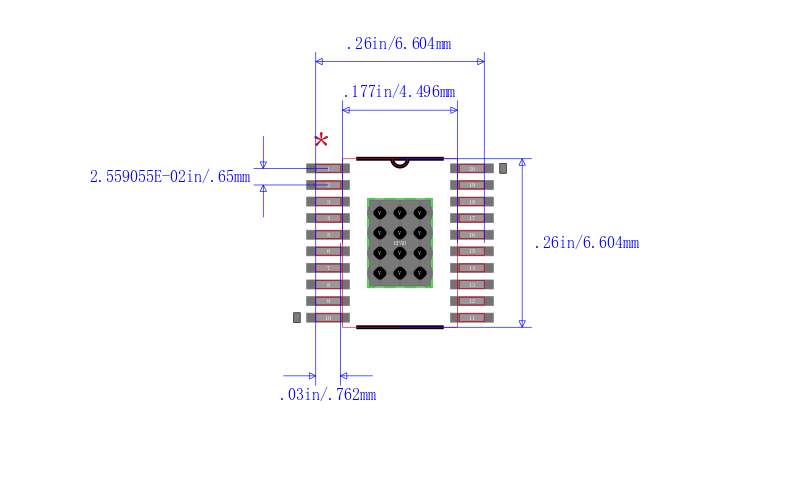

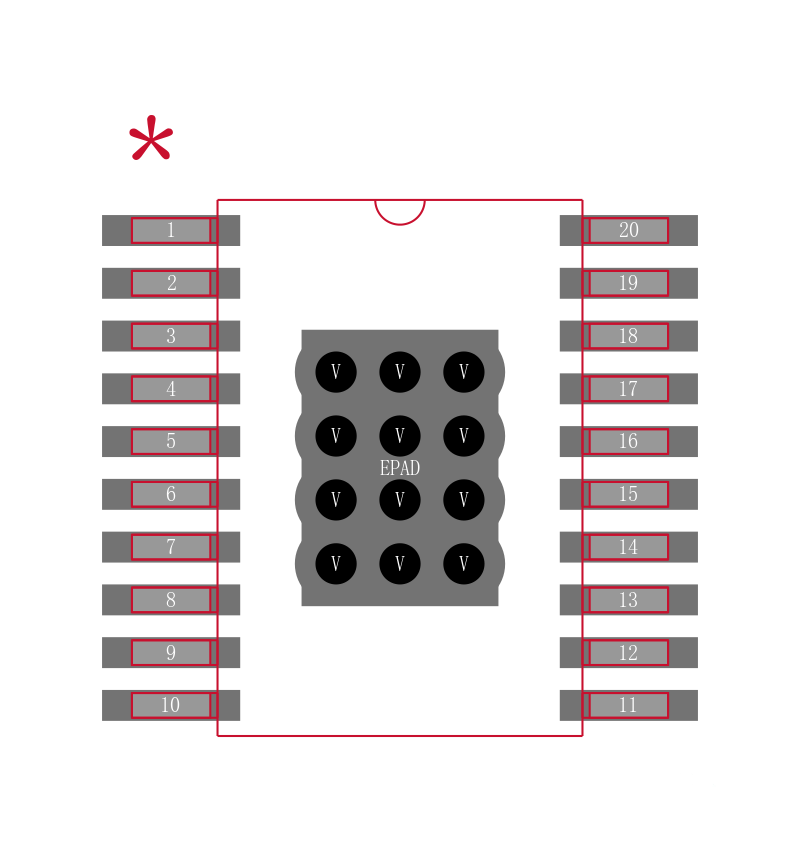

封装 HTSSOP-20
封装 HTSSOP-20
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS76818QPWPREP TI 德州仪器 | 当前型号 | 当前型号 |
TPS76818QPWP 德州仪器 | 完全替代 | TPS76818QPWPREP和TPS76818QPWP的区别 |
TPS76733QPWP 德州仪器 | 类似代替 | TPS76818QPWPREP和TPS76733QPWP的区别 |
TPS77533PWP 德州仪器 | 类似代替 | TPS76818QPWPREP和TPS77533PWP的区别 |
