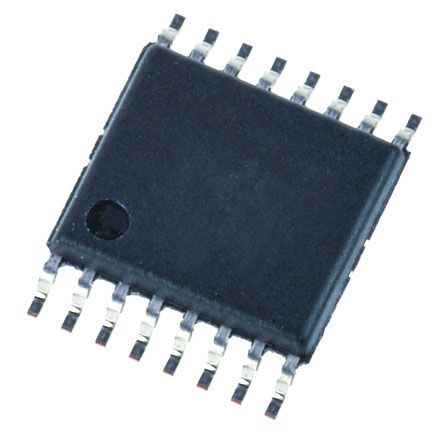

TEXAS INSTRUMENTS TPS54495PWP 芯片, 降压稳压器, 双路, 4.5至18V, 4A/2A, 16HTSSOP
Step-Down DC/DC Converters Integrated Switch 9V to 30V Input Max., Texas Instruments
得捷:
IC REG BCK ADJ 4A/2A DL 16HTSSOP
德州仪器TI:
4.5V to 18V Input, Dual 4A/2A Output, Synchronous Step-Down Converter
欧时:
### Step-Down DC/DC Converters Integrated Switch 9V to 30V Input Max., Texas Instruments### 直流/直流开关调节器转换器(集成开关),Texas InstrumentsTexas Instruments 的此系列高度集成的高效开关稳压器包括步升(升压)、步降(降压)、步升/降(增压/降压)和反相类型,为每个直流稳压器应用提供高效的解决方案。
贸泽:
Switching Voltage Regulators 4.5-18Vin,Dual 4A/2A Out,Sync SD Cnvrtr
e络盟:
TEXAS INSTRUMENTS TPS54495PWP 芯片, 降压稳压器, 双路, 4.5至18V, 4A/2A, 16HTSSOP
艾睿:
Adjust the voltage level of your devices with this step down TPS54495PWP DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 4|2 A. Using the part will provide the power your application needs by requiring a voltage only of 4.5 V and not exceeding a voltage of 18 V. With an adjustable output that has a voltage of 0.76 to 7 V, this is power management at its best. This part offers a switching frequency of 700 kHz in order to work properly. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.
安富利:
Conv DC-DC Single Step Down 4.5V to 18V 16-Pin HTSSOP EP Tube
Chip1Stop:
Conv DC-DC 4.5V to 18V Step Down Single-Out 0.76V to 7V 4A/2A 16-Pin HTSSOP EP Tube
Verical:
Conv DC-DC 4.5V to 18V Step Down Single-Out 0.76V to 7V 4A/2A 16-Pin HTSSOP EP Tube
DeviceMart:
IC REG BUCK SYNC ADJ 16HTSSOP
输出接口数 2
输出电压 0.76V ~ 7V
输出电流 4A, 2A
针脚数 16
静态电流 1.20 mA
调节输出数 2
开关频率 700 kHz
拓扑结构 Buck
输入电压Max 18 V
输入电压Min 4.5 V
输出电压Max 7 V
输出电压Min 0.76 V
输出电流Max 4 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5 V
输入电压 4.5V ~ 18V
安装方式 Surface Mount
引脚数 16
封装 HTSSOP-16
长度 5.1 mm
宽度 4.5 mm
高度 1.05 mm
封装 HTSSOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS54495PWP TI 德州仪器 | 当前型号 | 当前型号 |
TPS54494PWP 德州仪器 | 完全替代 | TPS54495PWP和TPS54494PWP的区别 |
TPS54395PWP 德州仪器 | 类似代替 | TPS54495PWP和TPS54395PWP的区别 |
TPS54495RSAT 德州仪器 | 类似代替 | TPS54495PWP和TPS54495RSAT的区别 |
