低ESR Low ESR
470 µF 模制 钽器 10 V 2917(7343 公制) 60 毫欧
艾睿:

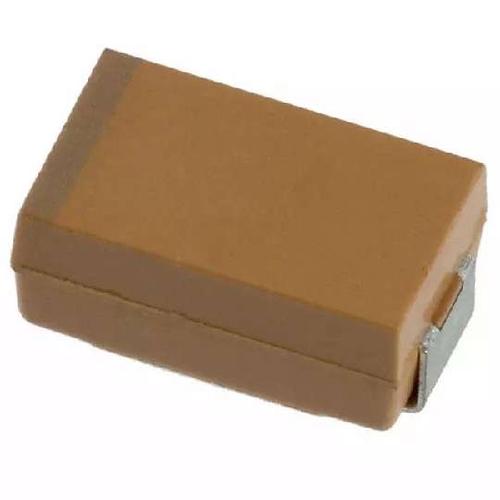

Do you need a capacitor for a sample and hold circuit? Then use this TPSE477M010R0060 solid tantalum capacitor from AVX for its low leakage current! It can withstand a voltage of 10 VDC. This solid capacitor has a maximum operating temperature of 125 °C. Its leakage current is 47 μA. It has a tolerance of 20%. Its capacitance value is 470uF. This product is 7.3 mm long, 4.1 mm tall and 4.3 mm deep.
安富利:
Cap Tant Solid 470uF 10V E CASE 20% 7.3 X 4.3 X 4.1mm SMD 7343-43 0.06 Ohm 125°C T/R
Verical:
Cap Tant Solid 470uF 10V E CASE 20% 7.3 X 4.3 X 4.1mm Inward L SMD 7343-43 0.06 Ohm 125C T/R
Newark:
# AVX TPSE477M010R0060 Surface Mount Tantalum Capacitor, 470 µF, 10 V, TPS Series, ± 20%, 2917 [7343 Metric] New
额定电压DC 10.0 V
电容 470 µF
等效串联电阻ESR 60 mΩ
容差 ±20 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
引脚数 2
封装 7343
高度 4.1 mm
封装 7343
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 400
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
