2.95 V至6 V的输入, 2 -A同步降压集成电源解决方案 2.95-V to 6-V Input, 2-A Synchronous Buck, Integrated Power Solution
降压 开关稳压器 IC 正 可调式 0.8V 1 输出 2A 39-BQFN 裸露焊盘
得捷:
IC REG BUCK ADJ 2A 39B1QFN
立创商城:
Vin=2.95V~6V Vout=0.8V~3.6V 2A
德州仪器TI:
3-V to 6-V Input, 2-A Synchronous Buck, Integrated Power Solution
艾睿:
Adjust the voltage level of your devices with this step down TPS84210RKGR DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 2 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.95 V that does not exceed 6 V. With an adjustable output that has a voltage of 0.8 to 3.6 V, this is power management at its best. A load regulation of 0.1%Typ and line regulation of 0.1%Typ is necessary for providing a constant voltage level at your output. This converter is 96 % efficient. Its switching regulator has a frequency of 500 to 2000 kHz. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.
安富利:
Conv DC-DC Single Step Down 2.95V to 6V 39-Pin QFN T/R
Chip1Stop:
Conv DC-DC Single Step Down 2.95V to 6V 39-Pin B1QFN T/R
Verical:
Conv DC-DC 2.95V to 6V Step Down Single-Out 0.8V to 3.6V 2A 39-Pin B1QFN T/R
DeviceMart:
IC REG BUCK SYNC ADJ 2A 39B1QFN
输出接口数 1
输出电压 0.8V ~ 3.6V
输出电流 2 A
调节输出数 1
开关频率 500 kHz
过温保护 Yes
拓扑结构 Buck
输入电压Max 6 V
输入电压Min 2.95 V
输出电压Max 3.6 V
输出电压Min 0.8 V
输出电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 2.95V ~ 6V
安装方式 Surface Mount
引脚数 39

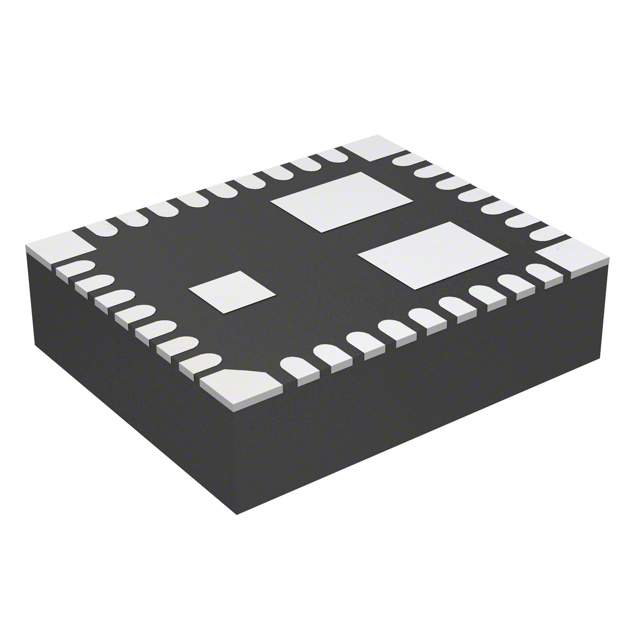

封装 BQFN-39
高度 2.85 mm
封装 BQFN-39
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS84210RKGR TI 德州仪器 | 当前型号 | 当前型号 |
TPS84210RKGT 德州仪器 | 类似代替 | TPS84210RKGR和TPS84210RKGT的区别 |
