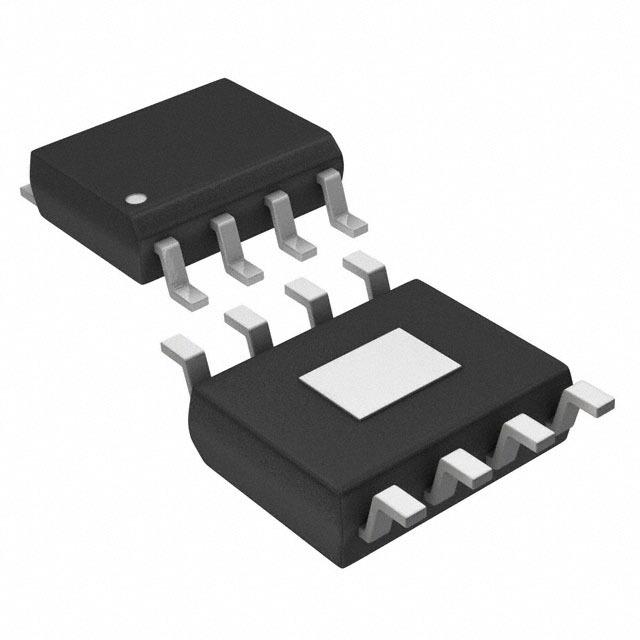

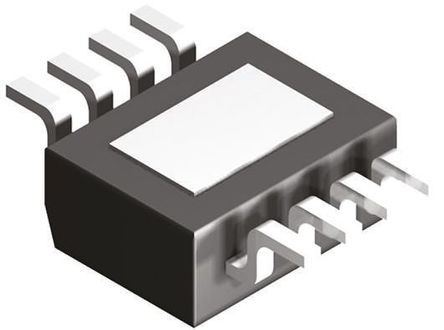

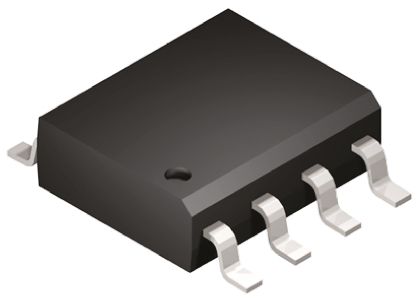

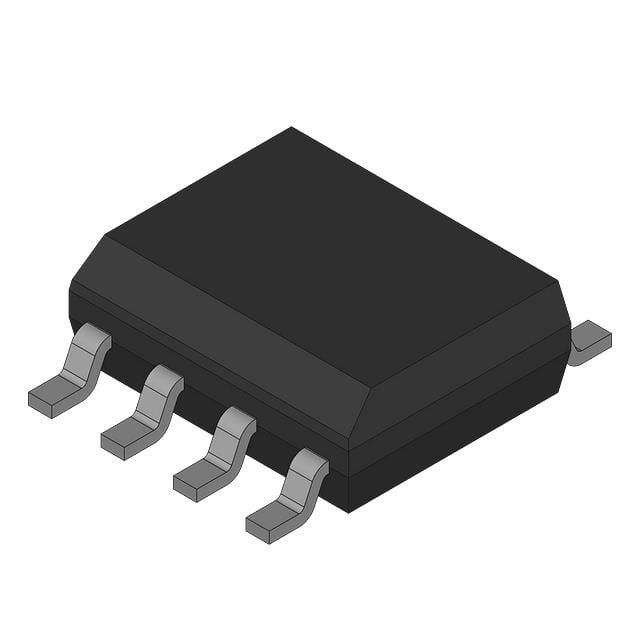

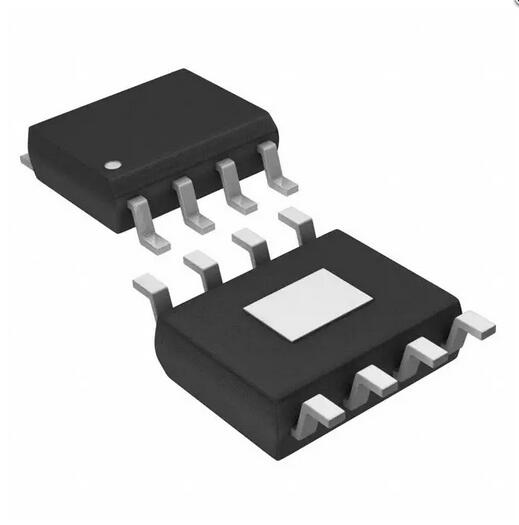

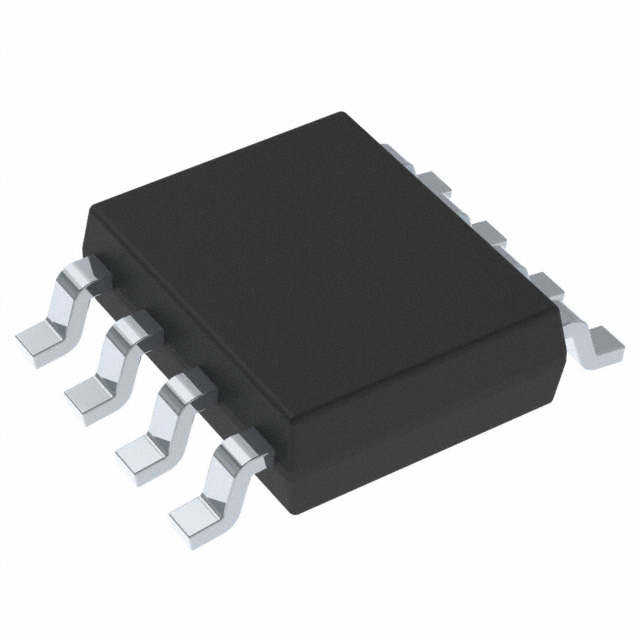

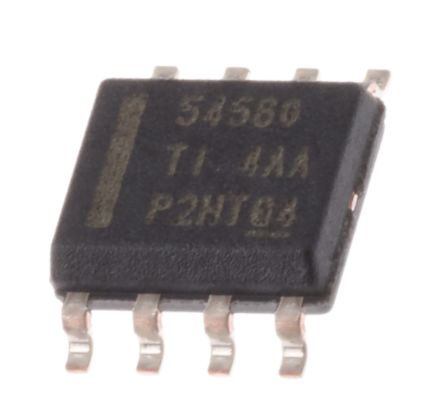

TEXAS INSTRUMENTS TPS54560DDA 直流-直流开关降压逐步递减稳压器, 可调, 4.5V-60V输入, 800mV-58.8V输出, 5A输出, PPAD-8
The is an adjustable output step down DC to DC converter with Eco-Mode in 8 pin SO PowerPAD package. This step down regulator integrates a 92mohm high side MOSFET. The device survives load dump pulses up to 65V per ISO 7637. Current mode control provides simple external compensation and flexible component selection. A low ripple pulse skip mode reduces the no load supply current to 146µA. Shutdown supply current is reduced to 2µA when the enable pin is pulled low. Undervoltage lockout is internally set at 4.3V but can be increased using enable pin. The output voltage start up ramp is internally controlled to provide a controlled start up and eliminate overshoot. A wide switching frequency range allows either efficiency or external component size to be optimized. Output current is limited cycle by cycle. Frequency foldback and thermal shutdown protects internal and external components during an overload condition. The TPS54560DDA is supported by WEBENCH software tool.
This device has limited built-in ESD protection. The leads should be shorted together or device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
输出接口数 1
输出电压 0.8V ~ 58.8V
输出电流 5 A
针脚数 8
静态电流 146 µA
调节输出数 1
开关频率 2.5 MHz
拓扑结构 Buck
输入电压Max 60 V
输入电压Min 4.5 V
输出电压Max 58.8 V
输出电压Min 800 mV
输出电流Max 5 A
工作温度Max 150 ℃
工作温度Min -40 ℃
输入电压 4.5V ~ 60V
安装方式 Surface Mount
引脚数 8
封装 SO-8
长度 5 mm
宽度 4 mm
高度 1.55 mm
封装 SO-8
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 自动化与过程控制, 工业, 电源管理, 电机驱动与控制, 无线, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS54560DDA TI 德州仪器 | 当前型号 | 当前型号 |
TPS54560DDAR 德州仪器 | 类似代替 | TPS54560DDA和TPS54560DDAR的区别 |
