6 -A降压调节器,内置切换器 6-A Step-Down Regulator with Integrated Switcher
DESCRIPON
TPS53313 provides a 5-V or 12-V synchronous buck converter that integrates two N-Channel MOSFETs.Due to low RDSon and TI proprietary SmoothPWM™ skip mode of operation, it optimizes the efficiency at light-load condition without compromising the output voltage ripple.
The TPS53313 features programmable from 250kHz to 1.5MHz switching frequency with selectable skip mode or forced CCM mode operation. The device provides pre-biased startup, soft-stop, integrated bootstrap switch, power good function, EN/input UVLO protection. It supports input voltages from 4.5 V to 16 V and no extra bias voltage is needed. The output voltage is adjustable from 0.6 V up to 0.7 × VIN. The TPS53313 is available in a 4 mm × 4 mm,
24-pin, QFN package Green RoHs compliant and Pb free and operates between -40°C and 85°C.
FEATURES
• 4.5-V to 16-V Conversion Voltage Range
• Adjustable Output Voltage Ranging from 0.6 V to 0.7×VIN
• Continuous 6-A Output Current
• Supports All MLCC Output Capacitors
• Selectable SKIP Mode or Forced CCM
• Selectable Soft-Start Time 1 ms, 3 ms, or 6ms
• Selectable 4-5 A, 6-A or 9-A Peak Current Limit
• Optimized Efficiency at Light and Heavy Loads
• Voltage Mode Control
• Programmable Switching Frequency from 250 kHz to 1.5 MHz
• Synchronizes to External Clock
• RDSon Sensing for Zero Crossing Detection and Overcurrent Protection
• Soft-Stop Output Discharge During Disable
• Overcurrent, Overvoltage and Undervoltage Protection with Hiccup
• Over-Temperature Protection
• Open-Drain, Power Good Indication
• Internal Bootstrap Switch
• 4 mm × 4 mm, 24-Pin, QFN Package
输出接口数 1
输出电压 0.6V ~ 11.2V
输出电流 6 A
静态电流 320 µA
调节输出数 1
开关频率 250kHz ~ 1.5MHz
拓扑结构 Buck
输入电压Max 16 V
输入电压Min 4.5 V
输出电压Max 11.2 V
输出电压Min 0.6 V
输出电流Max 6 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 16 V
安装方式 Surface Mount
引脚数 24

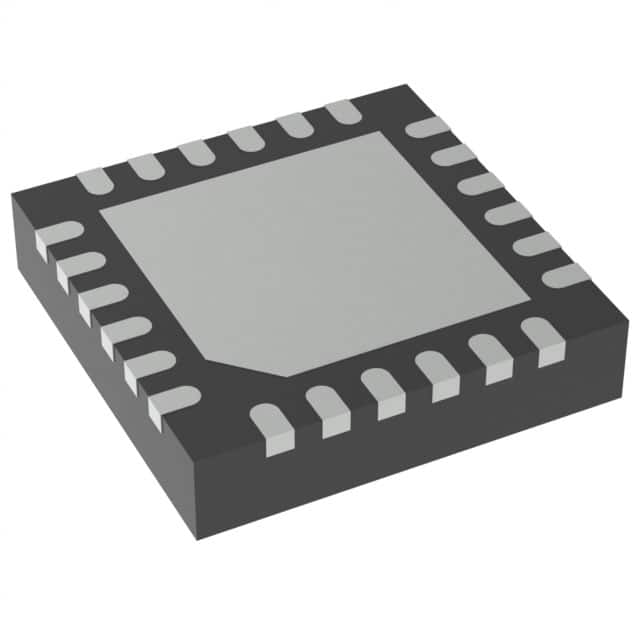

封装 VQFN-24
封装 VQFN-24
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS53313RGER TI 德州仪器 | 当前型号 | 当前型号 |
TPS53313RGET 德州仪器 | 类似代替 | TPS53313RGER和TPS53313RGET的区别 |
