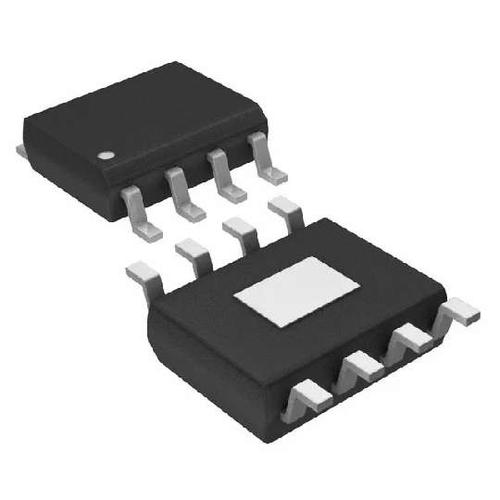

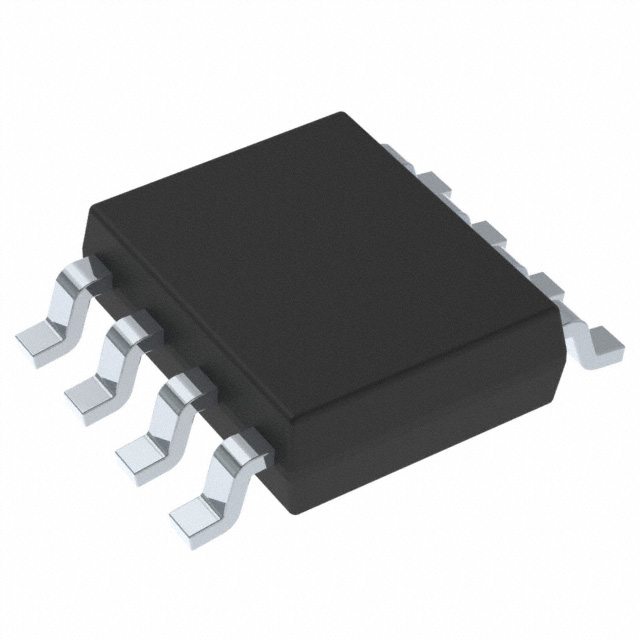

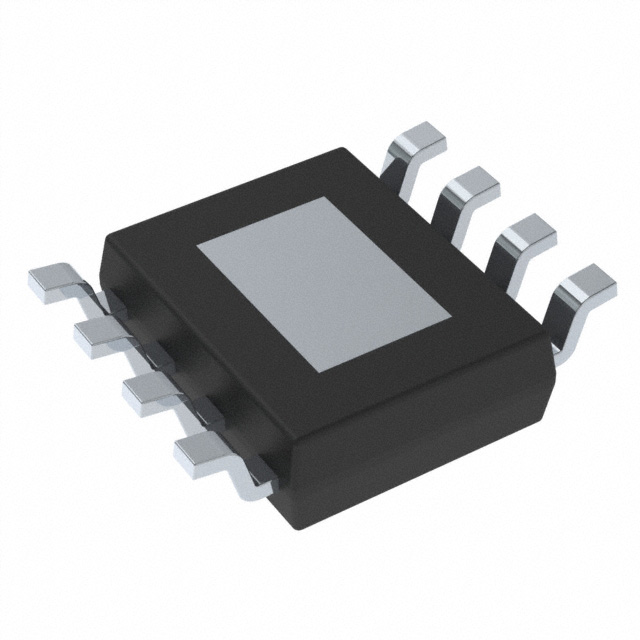

TPS54540QDDARQ1

开关稳压器 42V 5A SD Reg w/ Intg Hi Side MOSFET

降压，分压轨 开关稳压器 IC 正 可调式 0.8V 1 输出 5A 8-PowerSOIC（0.154"，3.90mm 宽）

得捷:
IC REG BCK SPLIT RAIL ADJ 8SOPWR

贸泽:
开关稳压器 42V 5A SD Reg w/ Intg Hi Side MOSFET

艾睿:
Adjust the voltage level of your devices with this step down TPS54540QDDARQ1 DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 5 A. Using the part will provide the power your application needs by requiring a voltage only of 4.5 V and not exceeding a voltage of 42 V. With an adjustable output that has a voltage of 0.8 to 41.1 V, this is power management at its best. You can operate this at a switching frequency of 100 to 2500 kHz. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.

安富利:
Conv DC-DC Single-OUT Step Down 4.5V to 42V 8-Pin SO PowerPAD T/R

Verical:
Conv DC-DC 4.5V to 42V Synchronous Step Down Single-Out 0.8V to 41.1V 5A Automotive 8-Pin HSOP EP T/R

DeviceMart:
IC REG BUCK ADJ 5A 8SOPWRPAD
