4.5 V至16 V输入，大电流，同步降压THREE DC- DC具有集成FET转换器 4.5-V TO 16-V INPUT, HIGH CURRENT, SYNCHRONOUS STEP DOWN THREE DC-DC CONVERTERS WITH INTEGRATED FET
Easy power control is made possible with this false pin count power management IC by Texas Instruments. This power management IC has an input voltage of 4.5 to 16 V. Its switching regulator has a frequency of 300 to 2200 kHz. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This power management IC has an operating temperature range of -40 °C to 85 °C.
输出接口数 3
输出电流 3A, 2A
耗散功率 3330 mW
静态电流 600 µA
调节输出数 3
开关频率 300kHz ~ 2.2MHz
拓扑结构 Buck
输入电压Max 16 V
输入电压Min 4.5 V
输出电压Max 16 V
输出电压Min 0.8 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 3330 mW
安装方式 Surface Mount
引脚数 40

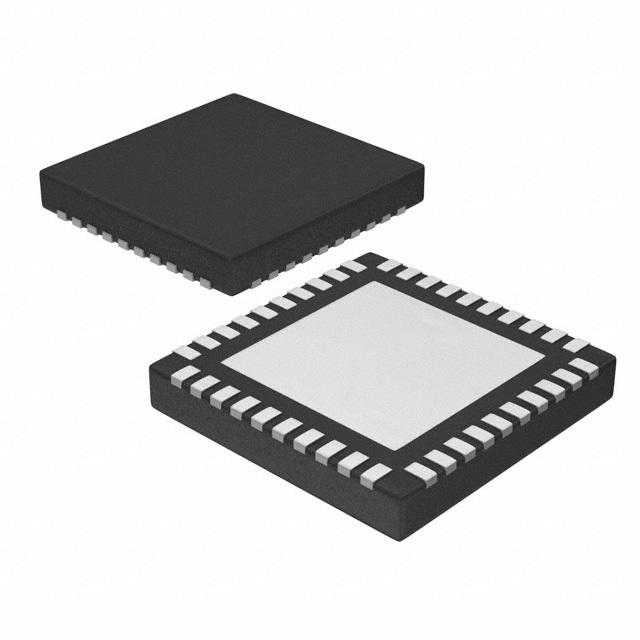

封装 VQFN-40
封装 VQFN-40
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPS652510RHAT TI 德州仪器 | 当前型号 | 当前型号 |
TPS652510RHAR 德州仪器 | 完全替代 | TPS652510RHAT和TPS652510RHAR的区别 |
TPS65257RHAR 德州仪器 | 完全替代 | TPS652510RHAT和TPS65257RHAR的区别 |
TPS65258RHAT 德州仪器 | 完全替代 | TPS652510RHAT和TPS65258RHAT的区别 |
