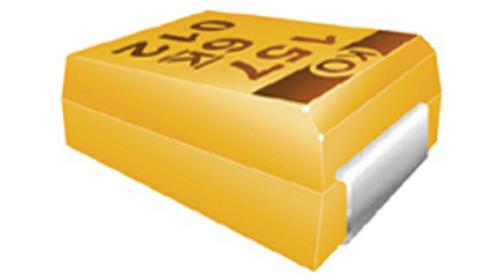

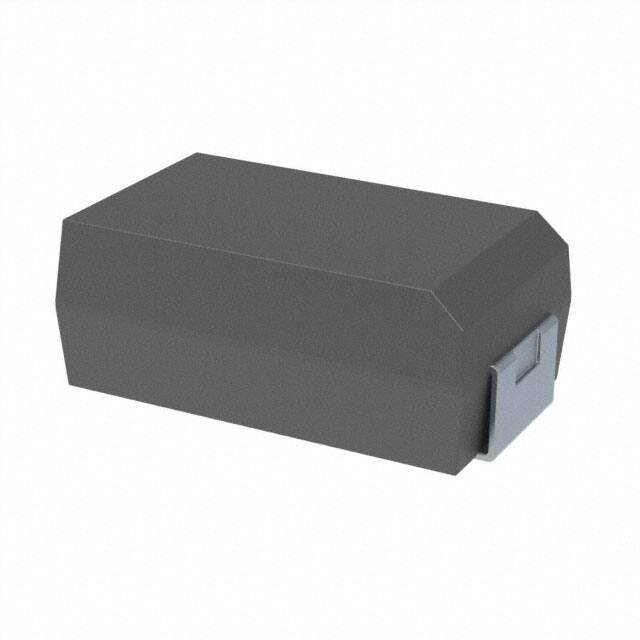

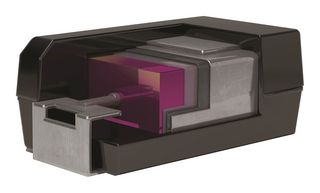

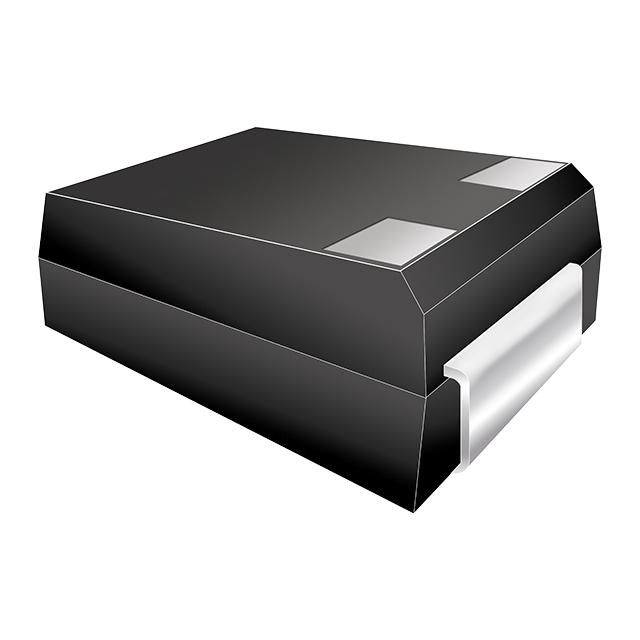

KEMET T520D687M004ATE012 表面贴装钽电容, T520系列, 680 µF, 2917 [7343 公制], 0.012 ohm, 4 V
With this polymer electrolyte from Kemet you"re getting a versatile, low cost capacitor that is perfect for maintaining robust, low impedance power delivery networks. It can withstand a voltage of 4 VDC. It has 2 terminals. Its capacitance value is 680uF. Its leakage current is 272 μA. This polymer electrolyte has a minimum operating temperature of -55 °C and a maximum of 105 °C. This product is 7.3 mm long, 2.8 mm tall and 4.3 mm deep.
额定电压DC 4 V
电容 680 µF
等效串联电阻ESR 0.012 Ω
容差 ±20 %
产品系列 T520
纹波电流 4300 mA
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 4 V
安装方式 Surface Mount
引脚数 2
封装 7343
长度 7.3 mm
宽度 4.3 mm
高度 2.8 mm
封装 7343
介质材料 Tantalum
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
寿命(小时) 2000h @105℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
T520D687M004ATE012 KEMET Corporation 基美 | 当前型号 | 当前型号 |
4TPF680MAH 松下 | 功能相似 | T520D687M004ATE012和4TPF680MAH的区别 |
