TPS65980RHFR

Thunderbolt™ 总线电源管理 IC PMIC 24-VQFN -40 to 85

The TPS65980 DC/DC switching regulator that receives power from a Thunderbolt™ or Thunderbolt™ 2 power bus ranging from 2.5-V to 15.75-V and generates three separate 3.3-V supply outputs.

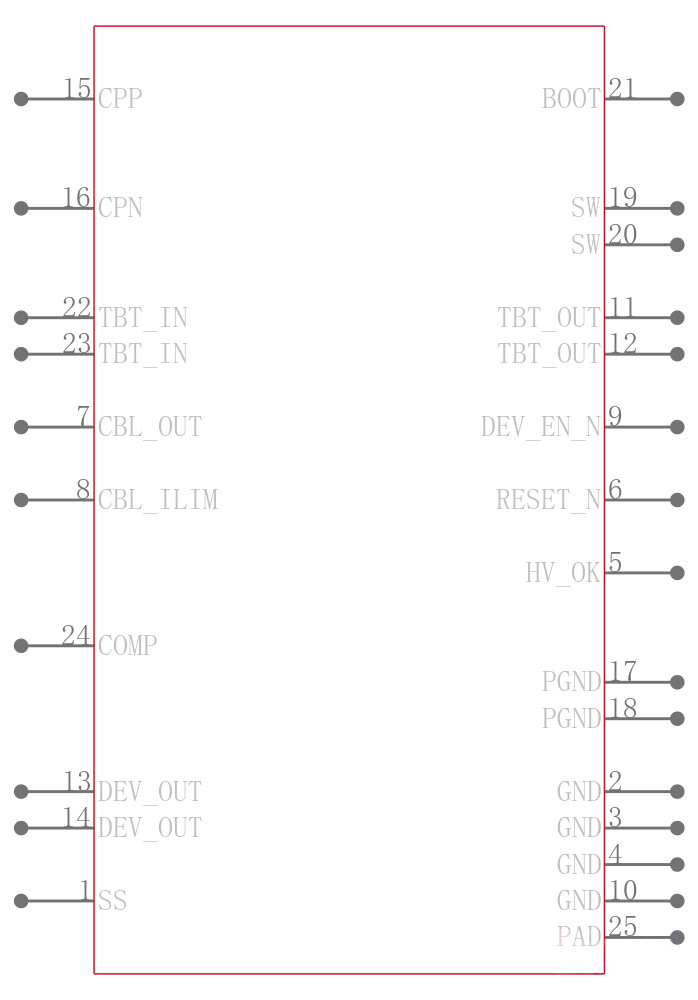

The TBT_OUT supply provides power to the local peripheral Thunderbolt™ controller and support circuitry. The CBL_OUT supply provides power back to the Thunderbolt™ cable and has adjustable current limit. The DEV_OUT supply provides power to all other circuitry in the device to perform its designed function.

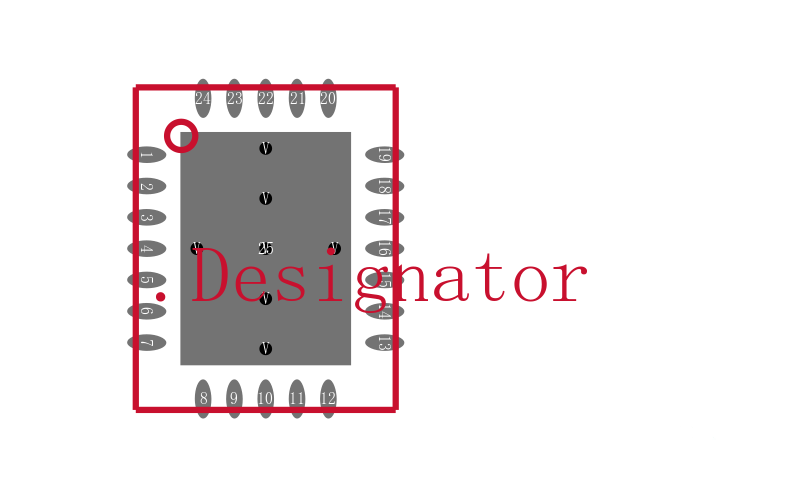

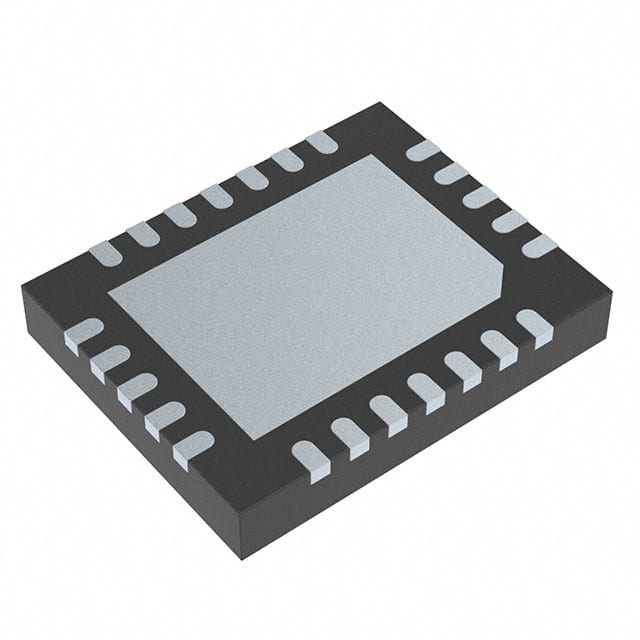

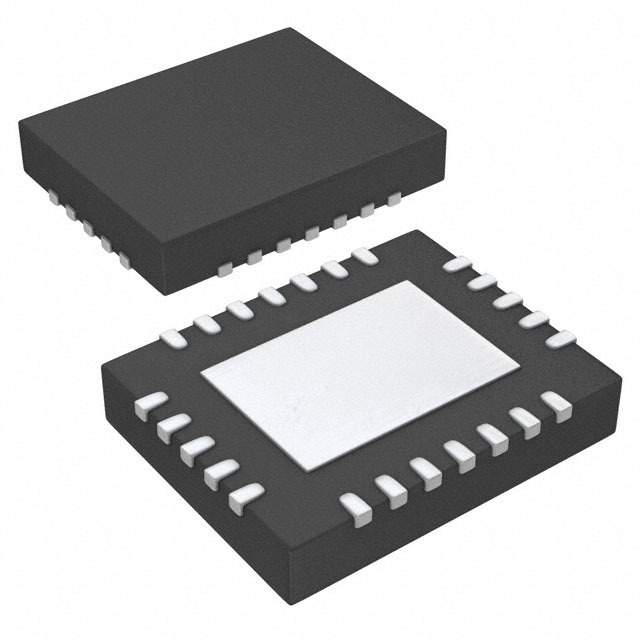

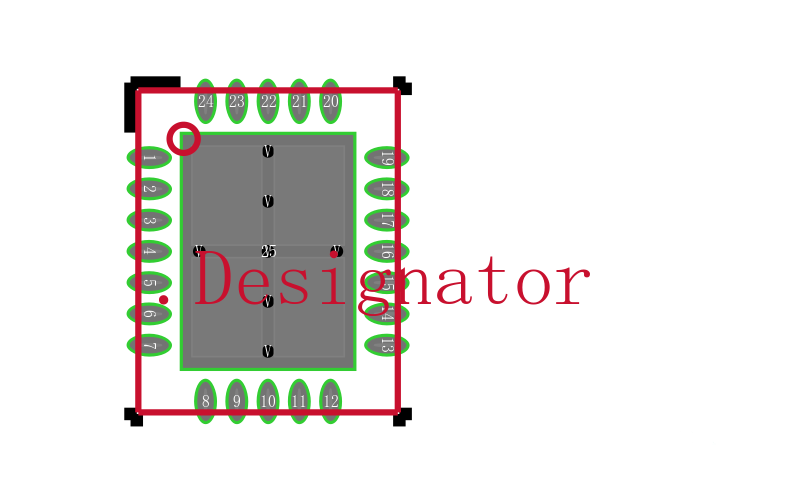

The TPS65980 is available in a 24-pin 5mm x 4mm x 0.9mm VQFN package.
