1.5A超LDO ,可编程软启动 1.5A Ultra-LDO with Programmable Soft-Start
DESCRIPON
The TPS74201 low-dropout LDO linear regulator provides an easy-to-use robust power management
solution for a wide variety of applications. User-programmable soft-start minimizes stress on the input power source by reducing capacitive inrush current on start-up. The soft-start is monotonic and well suited for powering many different types of processors and ASICs. The enable input and power-good output allow easy sequencing with external regulators. This complete flexibility permits the user to configure a solution that will meet the sequencing requirements of FPGAs, DSPs, and other applications with special start-up requirements.
FEATURES
• Soft-Start SS Pin Provides a Linear Startup with Ramp Time Set by External Capacitor
• 1% Accuracy Over Line, Load, and Temperature
• Supports Input Voltages as Low as 0.9V with External Bias Supply
• Adjustable Output 0.8V to 3.6V
• Ultra-Low Dropout: 55mV at 1.5A typ
• Stable with Any or No Output Capacitor
• Excellent Transient Response
• Available in 5mm × 5mm × 1mm QFN and DDPAK-7 Packages
• Open-Drain Power-Good 5 × 5 QFN
• Active High Enable
APPLICATIONS
• FPGA Applications
• DSP Core and I/O Voltages
• Post-Regulation Applications
• Applications with Special Start-Up Time or Sequencing Requirements
• Hot-Swap and Inrush Controls
输出接口数 1
输出电压 0.796V ~ 3.6V
输出电流 1.5 A
耗散功率 4980 W
静态电流 3.00 mA
输出电容类型 Ceramic
跌落电压 0.06V @1.5A
调节输出数 1
输入电压Max 5.5 V
输入电压Min 0.8 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 0.86V ~ 5.5V
安装方式 Surface Mount
引脚数 8

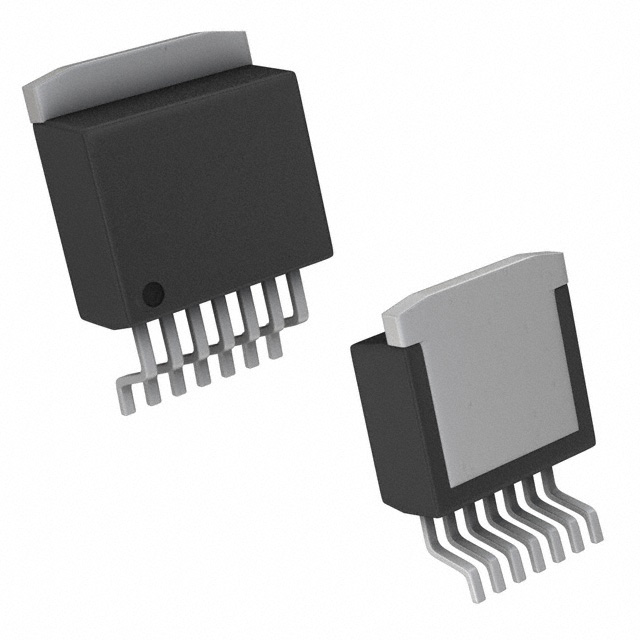

封装 TO-263-7
长度 10.1 mm
宽度 8.89 mm
高度 4.44 mm
封装 TO-263-7
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS74201KTWTG3 TI 德州仪器 | 当前型号 | 当前型号 |
TPS74201KTWRG3 德州仪器 | 完全替代 | TPS74201KTWTG3和TPS74201KTWRG3的区别 |
TPS74201KTWR 德州仪器 | 类似代替 | TPS74201KTWTG3和TPS74201KTWR的区别 |
TPS74201KTWT 德州仪器 | 功能相似 | TPS74201KTWTG3和TPS74201KTWT的区别 |
