两相集成MOSFET驱动器同步降压控制器 TWO-PHASE, SYNCHRONOUS BUCK CONTROLLER WITH INTEGRATED MOSFET DRIVERS
Use the synchronous buck DC voltage controller from Texas Instruments to step up and down your DC voltage. This DC voltage controller has single output. With an output that has a voltage of 0.7 to 3.6 V, this is power management at its best. Its output produces a current of 50Max A. This DC voltage controller has an input voltage of 3 to 40 V. This part offers a switching frequency of 1000 kHz in order to work properly. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.
输出接口数 1
输出电压 0.7V ~ 3.6V
输出电流 50 A
开关频率 100kHz ~ 1.2MHz
输入电压Max 40 V
输入电压Min 3 V
输出电流Max 50 A
最大占空比 0.875
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 3V ~ 40V
安装方式 Surface Mount

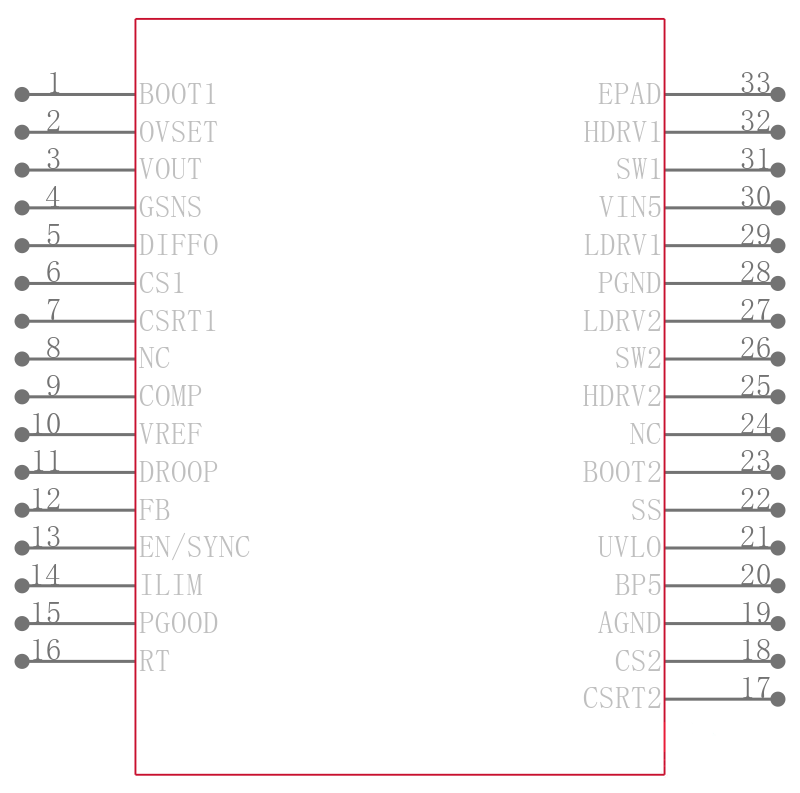

引脚数 32

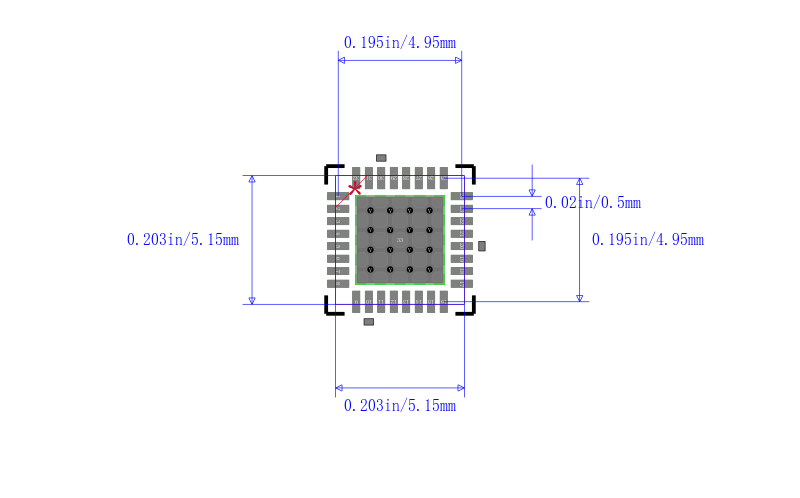

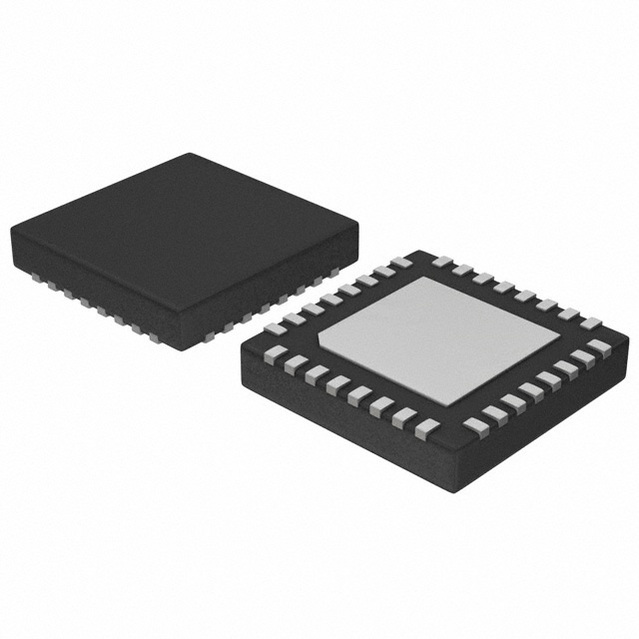

封装 VQFN-32
封装 VQFN-32
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
