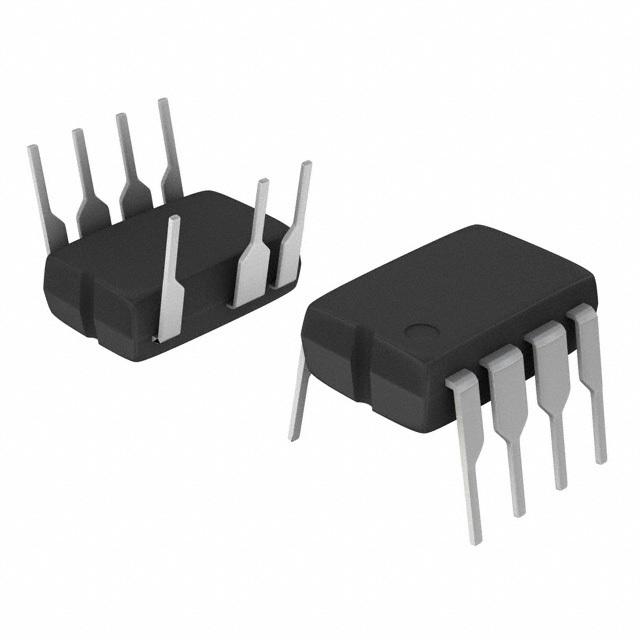

POWER INTEGRATIONS TNY275PG 芯片, 交流/直流转换器, 反激式, DIP-7
The is an energy-efficient offline Switcher incorporates a 700V power MOSFET, oscillator, high voltage switched current source, current limit and thermal shutdown circuitry. It uses an ON/OFF control scheme and offers a design flexible solution with a low system cost and extended power capability. TinySwitch-III combines a high voltage power MOSFET switch with a power supply controller in one device. Unlike conventional PWM controllers, it uses a simple ON/OFF control to regulate the output voltage. The controller consists of an oscillator and enables circuit, current limit state machine, 5.85V regulator, BYPASS/MULTI-FUNCTION pin undervoltage, overvoltage circuit and current limit selection circuitry, over-temperature protection, current limit circuit, leading edge blanking. TinySwitch-III incorporates additional circuitry for line undervoltage sense, auto-restart, adaptive switching cycle on-time extension and frequency jitter.
额定功率 11.5 W
输出接口数 1
输出电压 12 V
输出电流 1 A
击穿电压 700 V
针脚数 7
输出功率 11.5 W
开关频率 132 kHz
占空比 65 %
输入电压AC Max 265 v
输入电压AC Min 85 v
最大占空比 65 %
工作温度Max 150 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 7
封装 DIP-8
封装 DIP-8
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tube
制造应用 计量, Power Management, 音频, Metering, Industrial, Consumer Electronics, Audio, Power Management, Industrial, , Consumer Electronics, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2018/01/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TNY275PG Power Integrations 帕沃英蒂格盛 | 当前型号 | 当前型号 |
TNY275PN 帕沃英蒂格盛 | 类似代替 | TNY275PG和TNY275PN的区别 |
