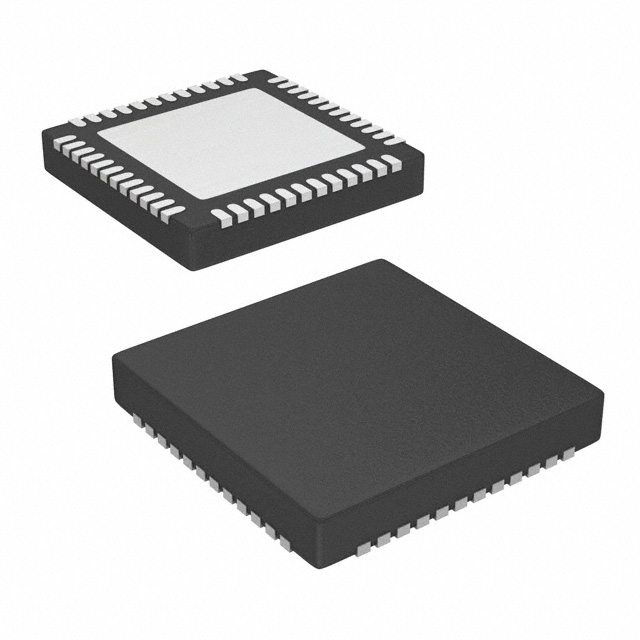

双通道( 3相CPU / 2相GPU) SVID , D- CAP + ?降压型控制器 Dual-Channel 3-Phase CPU/2-Phase GPU SVID, D-CAP+? Step-Down Controller
series 控制器,Intel IMVP-7 稳压器 IC 2 输出 48-VQFN(6x6)
得捷:
IC REG CTRLR IMVP-7 2OUT 48VQFN
德州仪器TI:
Dual Channel 3-Phase CPU / 2-Phase GPU SVID, D-CAP+TM Step-Down Controller
艾睿:
If you need to change voltage levels in your DC circuit design use the step down TPS59650RSLR DC voltage controller from Texas Instruments. Its output produces a current of 20 A. This DC voltage controller has 2 outputs. With an output that has a voltage of 0.25 to 1.52 V, this is power management at its best. This DC voltage controller has an input voltage of 3 to 28 V. It has a switching frequency of 250 to 600 kHz. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 105 °C.
安富利:
Step Down Controller 48-Pin VQFN EP T/R
Chip1Stop:
DC DC Cntrlr Dual-OUT Step Down 3V to 28V Input 48-Pin VQFN EP T/R
Verical:
DC DC Cntrlr Dual-OUT Step Down 3V to 28V Input 48-Pin VQFN EP T/R
DeviceMart:
IC CTLR IMVP7 3+2 STEPDWN 48VQFN
输出接口数 2
输出电压 0.25V ~ 1.52V
输出电流 20 A
静态电流 5.50 mA
调节输出数 2
过温保护 Yes
拓扑结构 Buck
输入电压Max 28 V
输入电压Min 3 V
工作温度Max 105 ℃
工作温度Min -40 ℃
输入电压 3V ~ 28V
安装方式 Surface Mount
引脚数 48

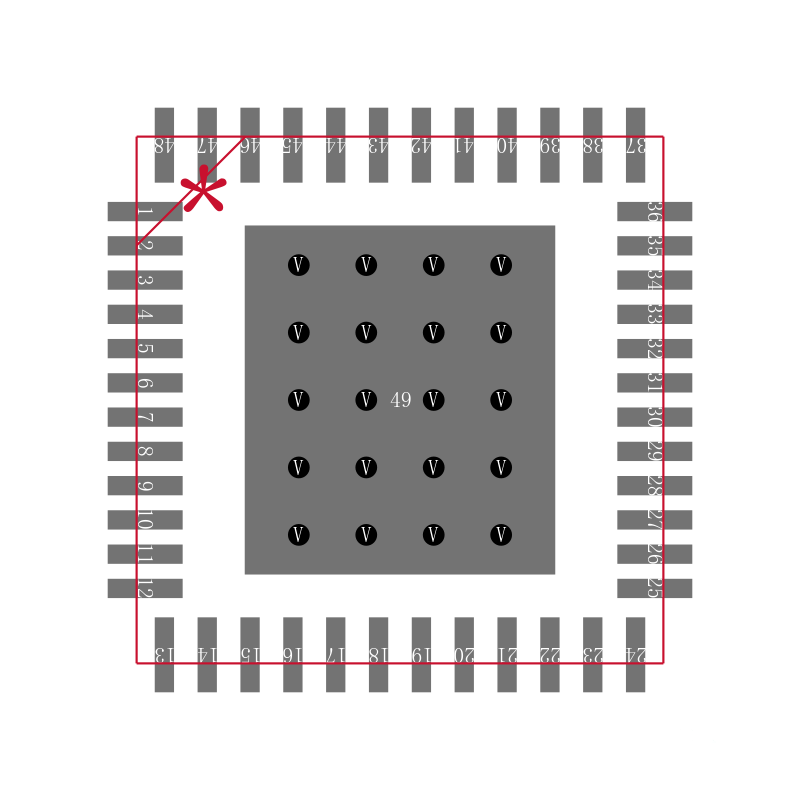

封装 VQFN-48
封装 VQFN-48
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 控制器,Intel IMVP-7
RoHS标准 RoHS Compliant
含铅标准
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS59650RSLR TI 德州仪器 | 当前型号 | 当前型号 |
TPS59650RSLT 德州仪器 | 完全替代 | TPS59650RSLR和TPS59650RSLT的区别 |
