高效率的8 -A或14 -A同步降压转换器与Eco模式 High-Efficiency 8-A or 14-A Synchronous Buck Converter with Eco-mode
The TPS53318 and TPS53319 devices are D-CAP mode, 8-A or 14-A synchronous switchers with integrated MOSFETs. They are designed for ease of use, low external component count, and space-conscious power systems.
These devices feature accurate 1%, 0.6-V reference, and integrated boost switch. A sample of competitive features include: 1.5-V to 22-V wide conversion input voltage range, very low external component count, D-CAP™ mode control for super fast transient, auto-skip mode operation, internal soft-start control, selectable frequency, and no need for compensation.
The conversion input voltage ranges from 1.5 V to 22 V, the supply voltage range is from 4.5 V to 25 V, and the output voltage range is from 0.6 V to 5.5 V.

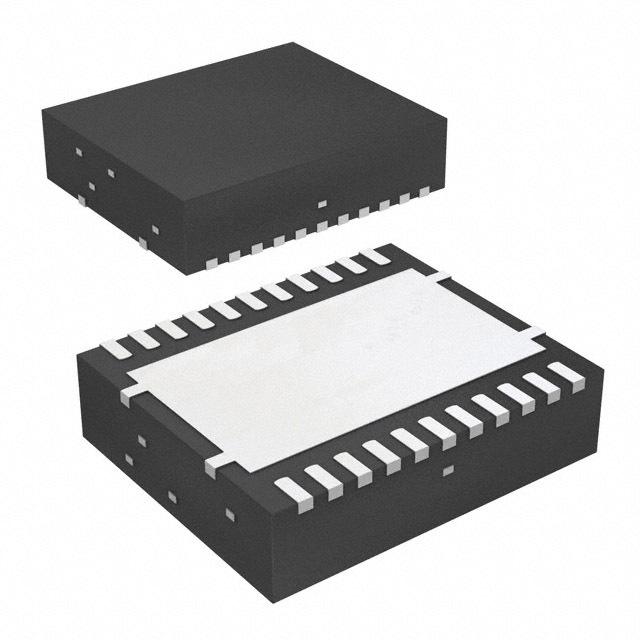

These devices are available in 5 mm x 6 mm, 22-pin QFN package and is specified from –40°C to 85°C.
输出接口数 1
输出电压 0.6V ~ 5.5V
输出电流 14 A
静态电流 320 µA
调节输出数 1
开关频率 250kHz ~ 1MHz
拓扑结构 Buck
输入电压Max 22 V
输入电压Min 1.5 V
输出电压Max 5.5 V
输出电压Min 0.6 V
输出电流Max 14 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 22 V
安装方式 Surface Mount
引脚数 22

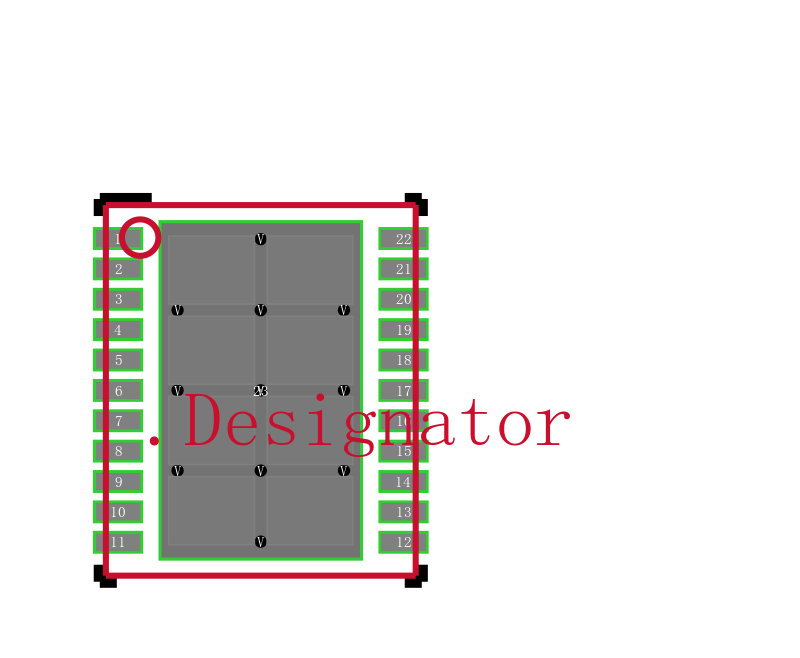

封装 SON-22
封装 SON-22
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS53319DQPR TI 德州仪器 | 当前型号 | 当前型号 |
TPS53319DQPT 德州仪器 | 类似代替 | TPS53319DQPR和TPS53319DQPT的区别 |
TPS53314RGFT 德州仪器 | 功能相似 | TPS53319DQPR和TPS53314RGFT的区别 |
TPS53314RGFR 德州仪器 | 功能相似 | TPS53319DQPR和TPS53314RGFR的区别 |
