汽车类集成式 5A 40V 宽输入范围升压/SEPIC/反激式直流到直流稳压器 16-WQFN -40 to 125
Adjust the voltage level of your devices with this step up DC to DC converter from Texas Instruments. This converter"s single output can produce a current up to 5 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.9 V and no higher than 38 V. With an adjustable output that has a voltage of 2.9 to 38 V, this is power management at its best. This part offers a switching frequency of 100 to 2500 kHz in order to work properly. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. The converter is ideal for operating at an isolation of Isolated. This converter has an operating temperature range of -40 °C to 125 °C.
输出接口数 1
输出电压 2.9V ~ 38V
输出电流 5 A
静态电流 500 µA
调节输出数 1
开关频率 100kHz ~ 2500kHz
输入电压Max 38 V
输入电压Min 2.9 V
输出电压Max 38 V
输出电压Min 2.9 V
输出电流Max 5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 38 V
安装方式 Surface Mount

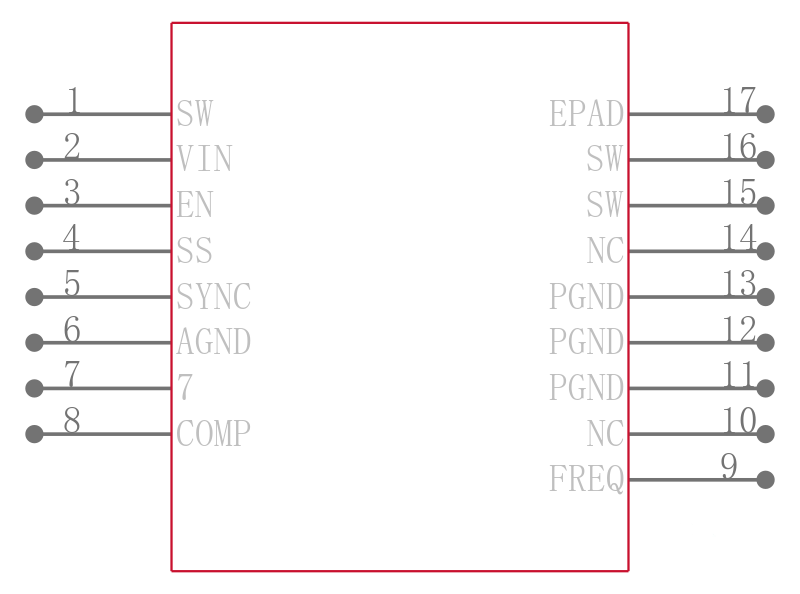

引脚数 16

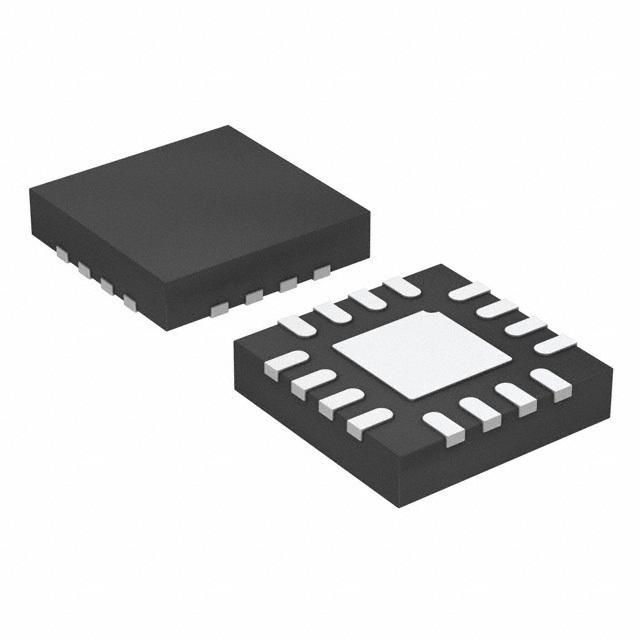

封装 QFN-16
封装 QFN-16
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 无铅
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPS55340QRTETQ1 TI 德州仪器 | 当前型号 | 当前型号 |
TPS55340QRTERQ1 德州仪器 | 类似代替 | TPS55340QRTETQ1和TPS55340QRTERQ1的区别 |
