具有低 Iq 和电压监控器的汽车类 3.6V 至 48V、3A 降压转换器 20-HTSSOP -40 to 125
The TPS54362-Q1 device is a step-down switch-mode power supply with a low-power mode and a programmable voltage supervisor. Integrated input voltage-line feed-forward topology improves line transient regulation of the voltage-mode buck regulator. The regulator has a cycle-by-cycle current limit. Pulse-skip mode operation under no load reduces the supply current to 65 µA. Using the enable pin reduces the supply shutdown current to 1 µA.
An open-drain reset signal indicates when the nominal output drops below the threshold set by an external resistor-divider network. A soft-start capacitor controls the output voltage start-up ramp. The device activates an internal undervoltage shutdown when the input supply ramps down to 2.6 V.
Frequency foldback operation protects the device during an overload conditions on the output. The device also has thermal shutdown protection due to excessive power dissipation.
The B-revision has an improved leakage current parameter, and improved discharged function while in disable mode.
输出接口数 1
输出电压 0.9V ~ 18V
输出电流 3 A
静态电流 65.0 µA
调节输出数 1
开关频率 200kHz ~ 2.2MHz
拓扑结构 Buck
输入电压Max 48 V
输入电压Min 3.6 V
输出电压Max 18 V
输出电压Min 0.9 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 48 V
安装方式 Surface Mount

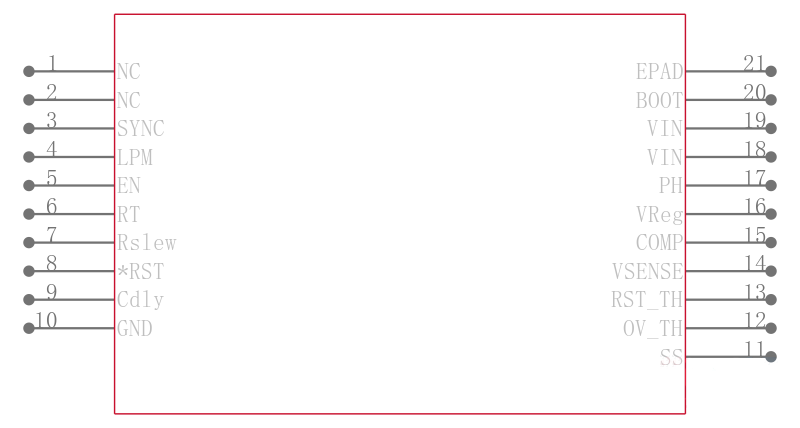

引脚数 20

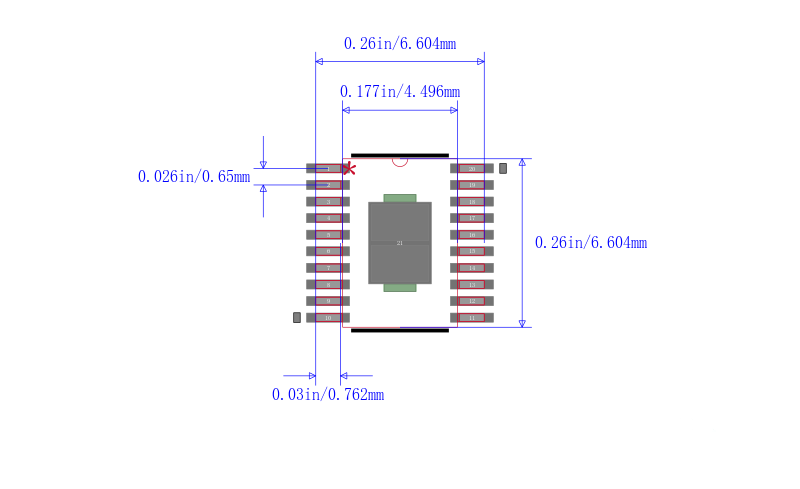

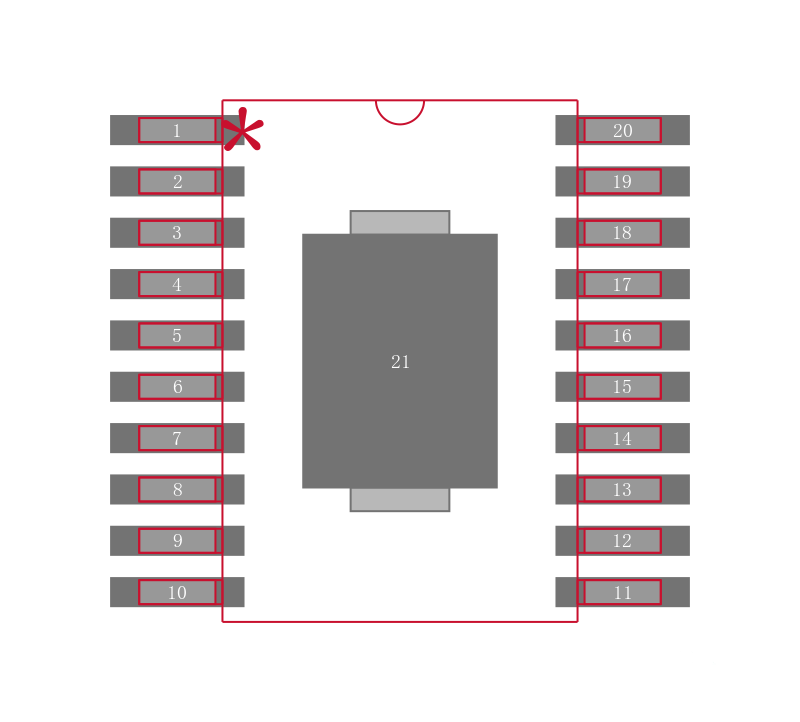

封装 HTSSOP-20
封装 HTSSOP-20
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
