三路同步降压控制器 TRIPLE SYNCHRONOUS BUCK CONTROLLER
Looking for a step up or step down in voltage within a DC circuit, look no further: this synchronous buck DC voltage controller from Texas Instruments will adjust the voltage properly. With an output that has a voltage of 0.9 to 5.5 V, this is power management at its best. This DC voltage controller has 3 outputs. This DC voltage controller has an input voltage of 4.5 to 28 V. You can operate this at a switching frequency of 500 kHz. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 28.0 V
输出接口数 4
输出电压 0.9V ~ 5.5V
输出电流 15.0 A
耗散功率 3210 mW
静态电流 2.00 mA
调节输出数 4
开关频率 300 kHz
过温保护 No
拓扑结构 Buck
输入电压Max 28 V
输入电压Min 4.5 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 3210 mW
电源电压 1.1V ~ 28V
输入电压 4.5V ~ 28V
安装方式 Surface Mount

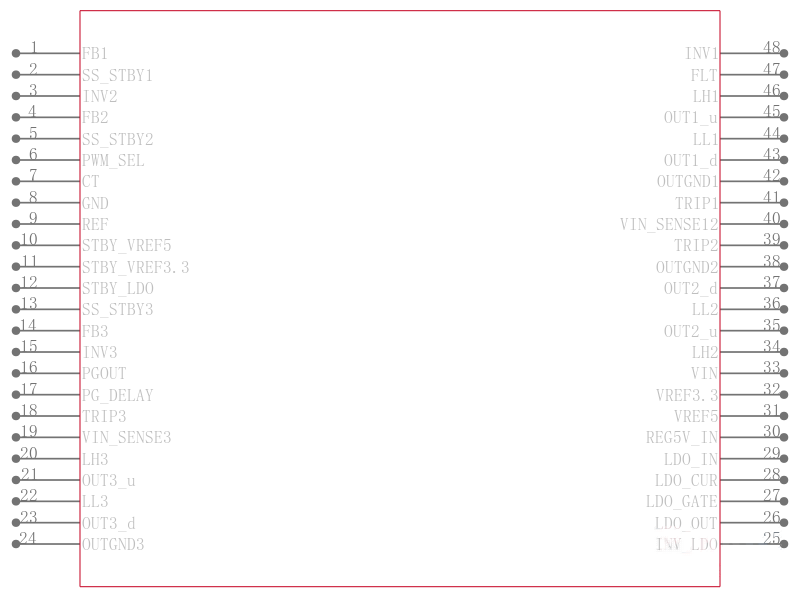

引脚数 48

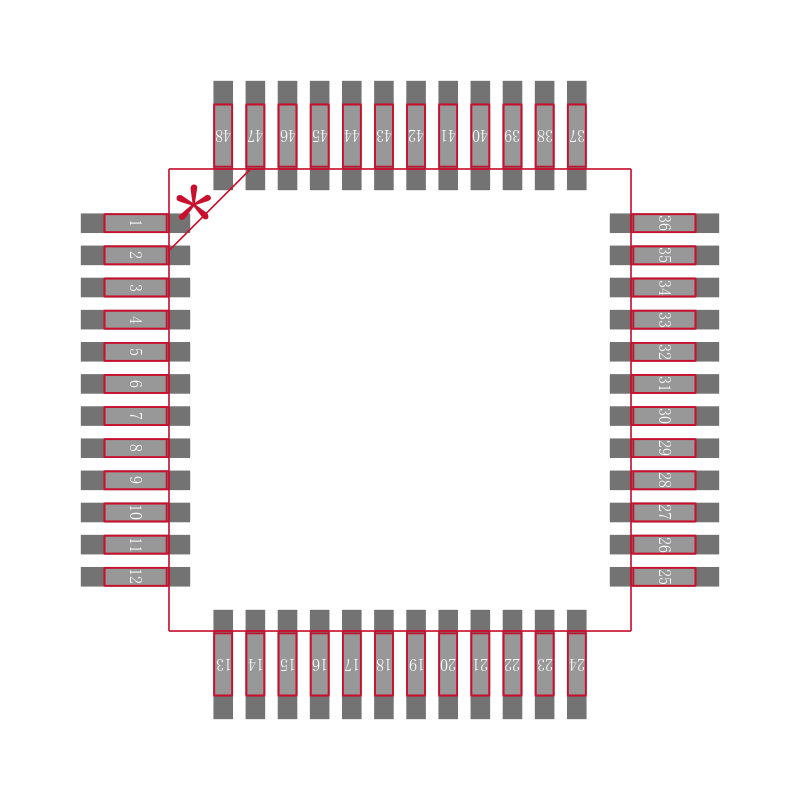

封装 LQFP-48
封装 LQFP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS5130PTR TI 德州仪器 | 当前型号 | 当前型号 |
TPS5130PTRG4 德州仪器 | 完全替代 | TPS5130PTR和TPS5130PTRG4的区别 |
TPS5130PTG4 德州仪器 | 完全替代 | TPS5130PTR和TPS5130PTG4的区别 |
TPS5130PT 德州仪器 | 类似代替 | TPS5130PTR和TPS5130PT的区别 |
