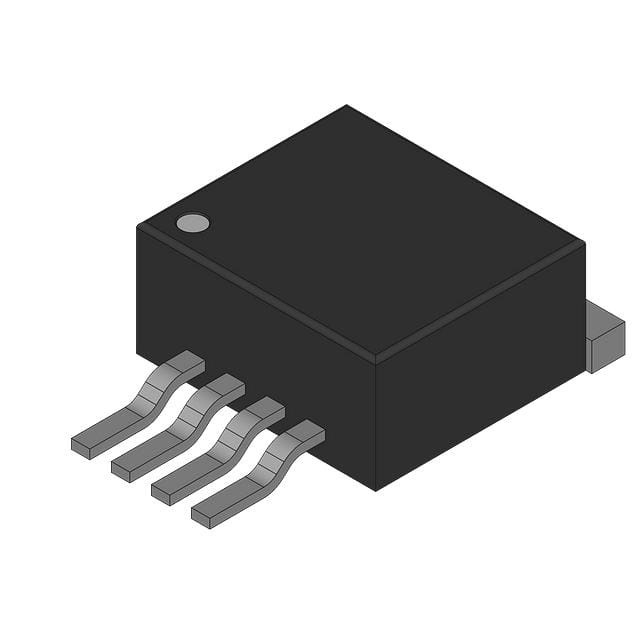

TEXAS INSTRUMENTS TPS75601KTTT 电压稳压器, LDO, 可调, 2.8V至5.5V输入, 250mV压差, 1.22V至5V/5A输出, TO-263-5
Control the voltage level of your circuit with this LDO linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.25@5A V. This voltage regulation device"s single output can produce a current up to 5 A. With a small input voltage of 2.8 V and a max of 5.5 V, this will supply sufficient power to your circuit. With an adjustable output that has a voltage of 1.22 to 5 V, this is power management at its best. A load regulation of 0.35%/VTyp and line regulation of 0.04%/VTyp is necessary for providing a constant voltage level at your output. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
输出接口数 1
输入电压DC 5.50V max
输出电压 1.22V ~ 5V
输出电流 5 A
供电电流 200 µA
针脚数 5
静态电流 0.125 mA
输出电容类型 Tantalum
跌落电压 250 mV
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2.8 V
输出电压Max 5 V
输出电压Min 1.22 V
输出电流Max 5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 3 %
输入电压 2.8V ~ 5.5V
安装方式 Surface Mount
引脚数 5
封装 TO-263-6
长度 10.16 mm
宽度 8.42 mm
高度 4.58 mm
封装 TO-263-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS75601KTTT TI 德州仪器 | 当前型号 | 当前型号 |
TPS75601KTTR 德州仪器 | 类似代替 | TPS75601KTTT和TPS75601KTTR的区别 |
TPS75601KTTRG3 德州仪器 | 类似代替 | TPS75601KTTT和TPS75601KTTRG3的区别 |
TPS75601KTTTG3 德州仪器 | 类似代替 | TPS75601KTTT和TPS75601KTTTG3的区别 |
