快速瞬态响应5 -A低压差稳压器 FAST-TRANSIENT RESPONSE 5-A LOW-DROPOUT VOLTAGE REGULATORS
The TPS755xx family of 5-A low dropout LDO regulators contains four fixed voltage option regulators with integrated power-good PG\\\\ and an adjustable voltage option regulator. These devices are capable of supplying 5 A of output current with a dropout of 250 mV TPS75533. Therefore, the device is capable of performing a 3.3-V to 2.5-V conversion. Quiescent current is 125 uA at full load and drops down to less than 1 uA when the device is disabled. The TPS755xx is designed to have fast transient response for large load current changes.
Because the PMOS device behaves as a low-value resistor, the dropout voltage is very low typically 250 mV at an output current of 5 A for the TPS75533 and is directly proportional to the output current. Additionally, since the PMOS pass element is a voltage-driven device, the quiescent current is very low and independent of output loading typically 125 uA over the full range of output current. These two key specifications yield a significant improvement in operating life for battery-powered systems.
The device is enabled when EN\ is connected to a low-level voltage. This LDO family also features a sleep mode; applying a TTL high signal to EN\ enable shuts down the regulator, reducing the quiescent current to less than 1 uA at TJ = 25°C. The power-good terminal PG\\\\ is an active low, open drain output, which can be used to implement a power-on reset or a low-battery indicator.
The TPS755xx is offered in 1.5-V, 1.8-V, 2.5-V, and 3.3-V fixed-voltage versions and in an adjustable version programmable over the range of 1.22 V to 5 V. Output voltage tolerance is specified as a maximum of 3% over line, load, and temperature ranges. The TPS755xx family is available in a 5-pin TO\x96220 KC and TO\x96263 KTT packages. View datasheet View product folder
输出接口数 1
输入电压DC 5.50V max
输出电压 1.8 V
输出电流 5 A
供电电流 200 µA
静态电流 0.125 mA
输出电容类型 Tantalum
跌落电压 0.25V @5A
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2.8 V
输出电压Min 1.8 V
输出电流Max 5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±3 %
输入电压 2.8V ~ 5.5V
安装方式 Surface Mount
引脚数 6

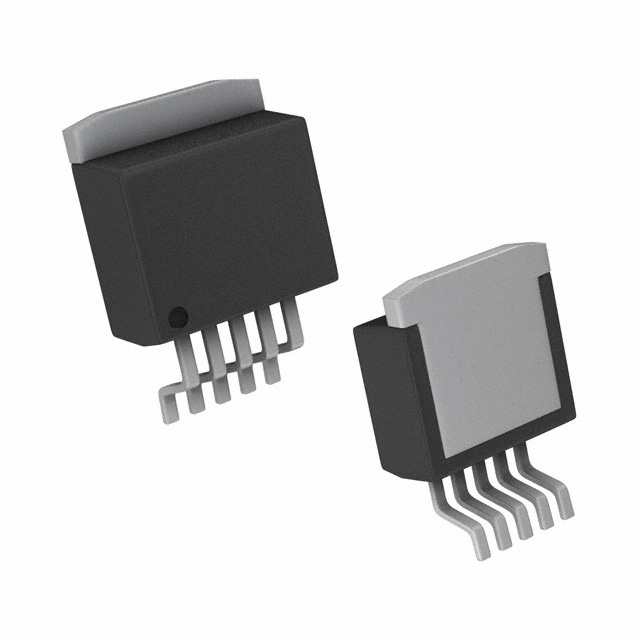

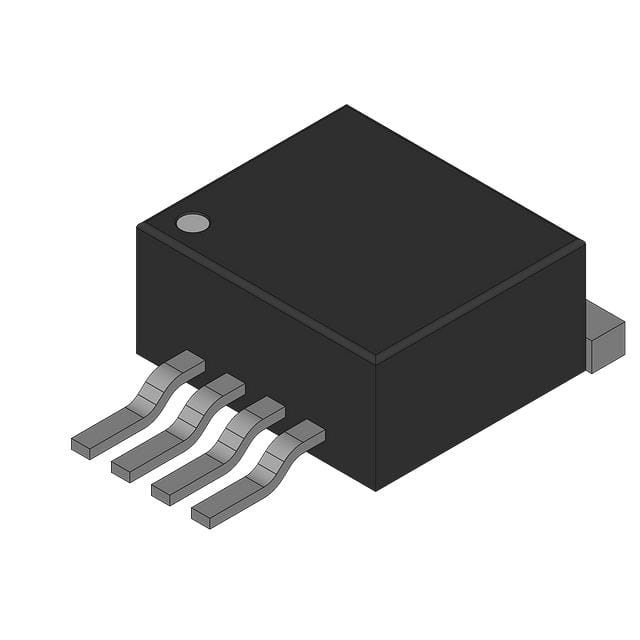

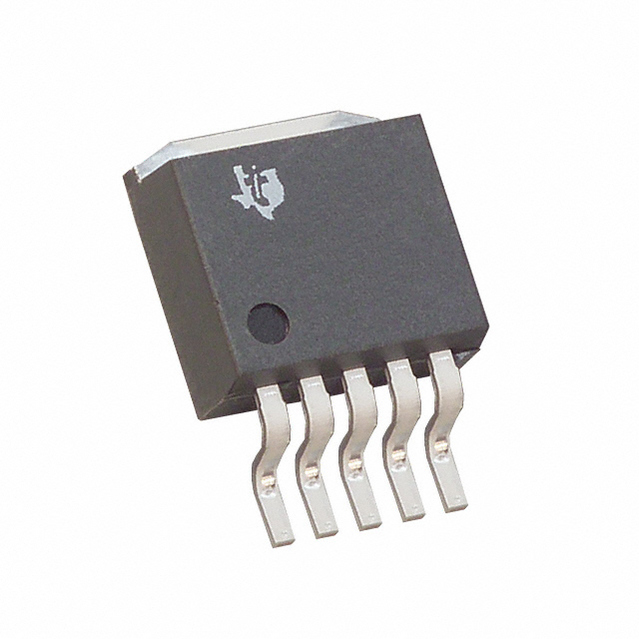

封装 TO-263-6
封装 TO-263-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS75518KTTT TI 德州仪器 | 当前型号 | 当前型号 |
TPS75518KTTR 德州仪器 | 类似代替 | TPS75518KTTT和TPS75518KTTR的区别 |
TPS75518KTTRG3 德州仪器 | 类似代替 | TPS75518KTTT和TPS75518KTTRG3的区别 |
TPS75518KTTTG3 德州仪器 | 类似代替 | TPS75518KTTT和TPS75518KTTTG3的区别 |
