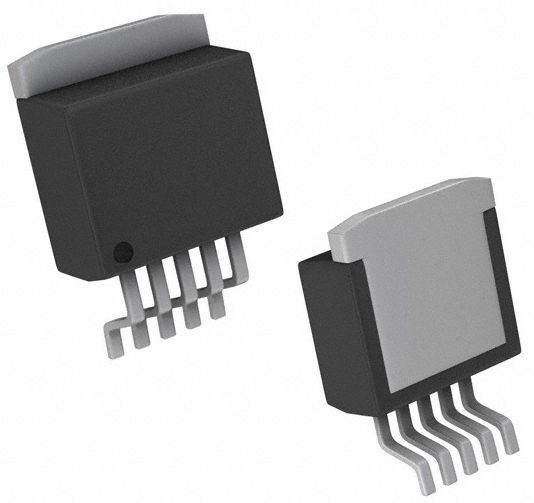

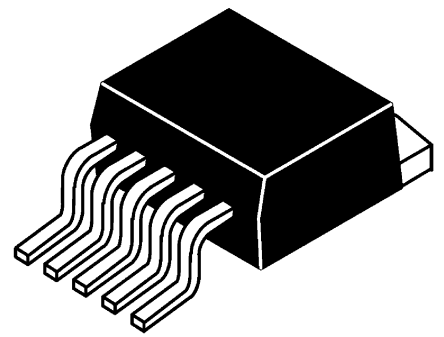

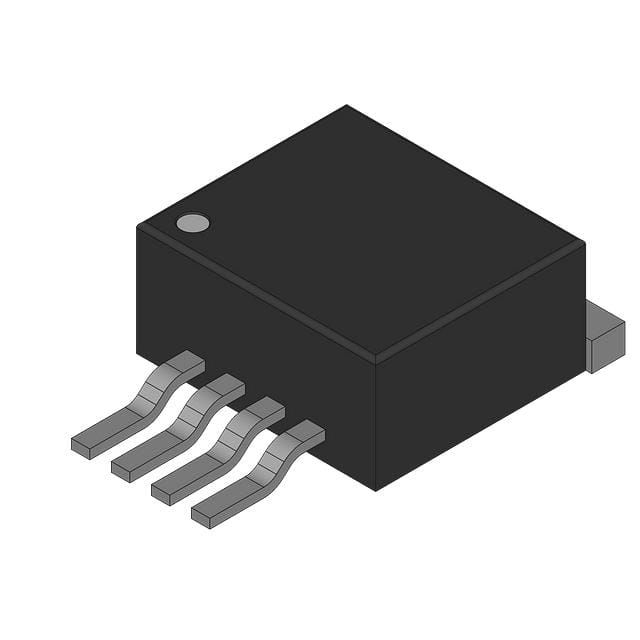

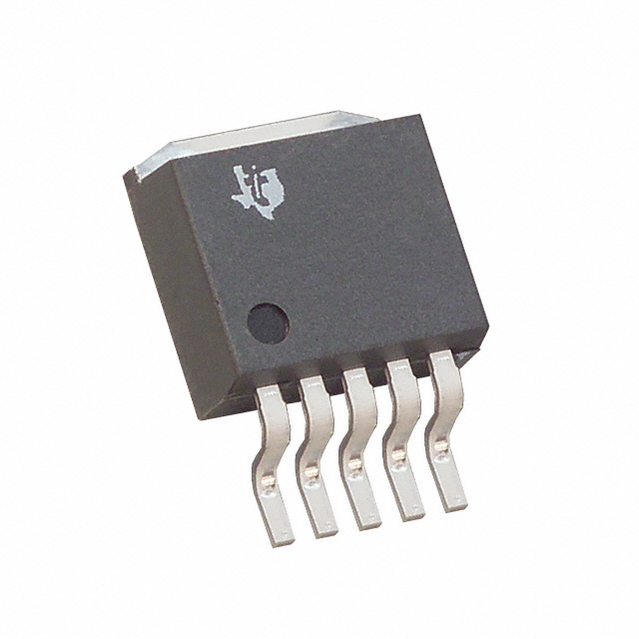

TPS75533KTTT

LDO（低压降）线性电压调节器，5A，Texas Instruments### LDO（低压降）线性电压调节器，Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

LDO（低压降）线性稳压器，5A，Texas Instruments

### LDO（低压降）线性稳压器，Texas Instruments

低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

得捷:
IC REG LIN 3.3V 5A DDPAK/TO263-5

欧时:
Texas Instruments TPS75533KTTT LDO 稳压器, 3.3 V输出, 5A最大输出, ±3%精确度, 2.8 → 5.5 V输入

e络盟:
固定LDO稳压器, 2.8V至5.5V, 250mV压降, 3.3V输出, 5A输出, TO-263-5

艾睿:
Don&s;t let unpredictable voltage levels ruin your circuit! Use this LDO TPS75533KTTT linear regulator from Texas Instruments to control your voltage levels! It has an overall accuracy of ±3 %. Its typical dropout voltage at current is 0.25@5A V. This voltage regulation device&s;s single output can produce a current up to 5 A. Use this part at voltages between 2.8 V and 5.5 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.35%/VTyp and line regulation of 0.04%/VTyp. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. The maximum dropout voltage is 0.5@5A V. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.

安富利:
LDO Regulator Pos 3.3V 5A 6-Pin5+Tab TO-263 T/R

Chip1Stop:
Single Channel LDO Single Output LDO, 5.0A, Fixed3.3V, Low Quiescent Current, Fast Transient Response LDO Regulator Pos 3.3V 5A 6-Pin5+Tab TO-263 T/R

Verical:
LDO Regulator Pos 3.3V 5A 6-Pin5+Tab TO-263 T/R

Newark:
# TEXAS INSTRUMENTS  TPS75533KTTT  Fixed LDO Voltage Regulator, 2.8V to 5.5V, 250mV Dropout, 3.3Vout, 5Aout, TO-263-5

力源芯城:
3.3V,5A带输出电压检测的极低压差稳压器

DeviceMart:
IC REG LDO 3.3V 5A TO-263-5
