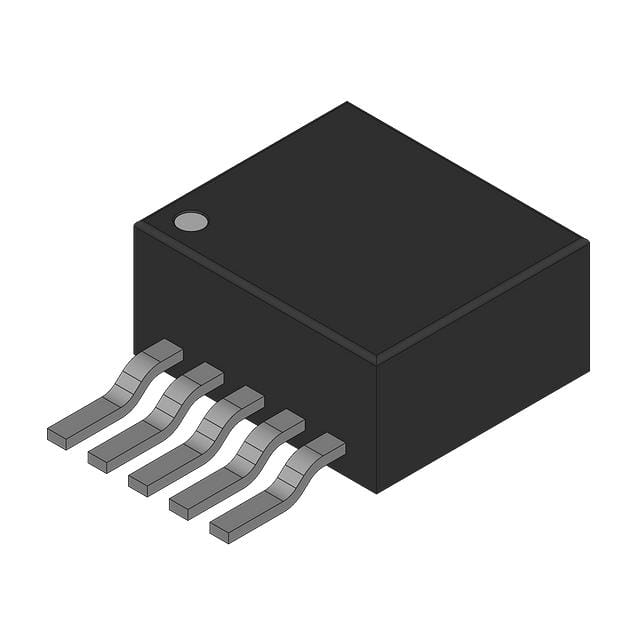

具有电源正常指示和使能功能的 3A 超低压降稳压器 5-DDPAK/TO-263 -40 to 125
description
The TPS757xx family of 3-A low dropout LDO regulators contains four fixed voltage option regulators with integrated power-good PG and an adjustable voltage option regulator. These devices are capable of supplying 3 A of output current with a dropout of 150 mV TPS75733. Therefore, the device is capable of performing a 3.3-V to 2.5-V conversion. Quiescent current is 125 µA at full load and drops down to less than 1 µA when the device is disabled. The TPS757xx is designed to have fast transient response for large load current changes.
• 3-A Low-Dropout Voltage Regulator
• Available in 1.5-V, 1.8-V, 2.5-V, and 3.3-V Fixed-Output and Adjustable Versions
• Open Drain Power-Good PG Status Output Fixed Options Only
• Dropout Voltage Typically 150 mV at 3 A TPS75733
• Low 125 µA Typical Quiescent Current
• Fast Transient Response
• 3% Tolerance Over Specified Conditions for Fixed-Output Versions
• Available in 5-Pin TO−220 and TO−263 Surface-Mount Packages
• Thermal Shutdown Protection
输出接口数 1
输出电压 3.3 V
输出电流 3 A
静态电流 120 µA
输出电容类型 Tantalum
跌落电压 0.15V @3A
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2.8 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±3 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 6
封装 TO-263-6
封装 TO-263-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS75733KTTRG3 TI 德州仪器 | 当前型号 | 当前型号 |
TPS75733KTTR 德州仪器 | 完全替代 | TPS75733KTTRG3和TPS75733KTTR的区别 |
TPS75733KTTT 德州仪器 | 类似代替 | TPS75733KTTRG3和TPS75733KTTT的区别 |
TPS75733KTTTG3 德州仪器 | 功能相似 | TPS75733KTTRG3和TPS75733KTTTG3的区别 |
